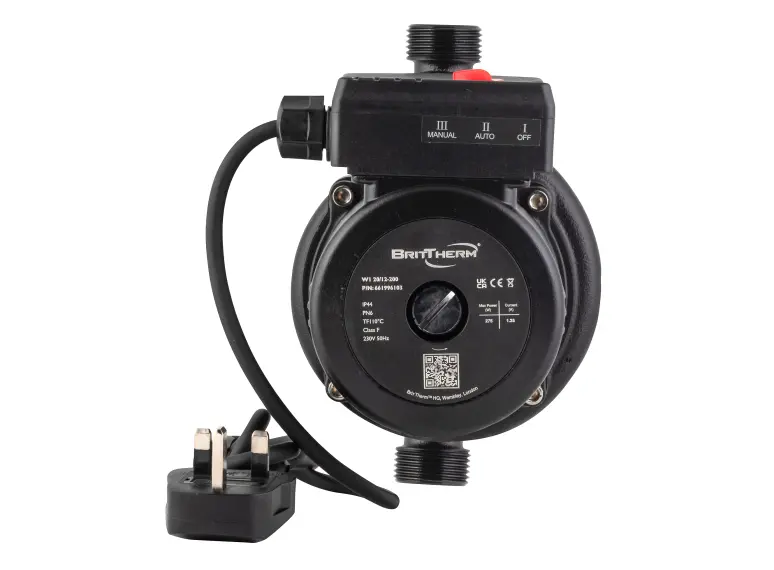

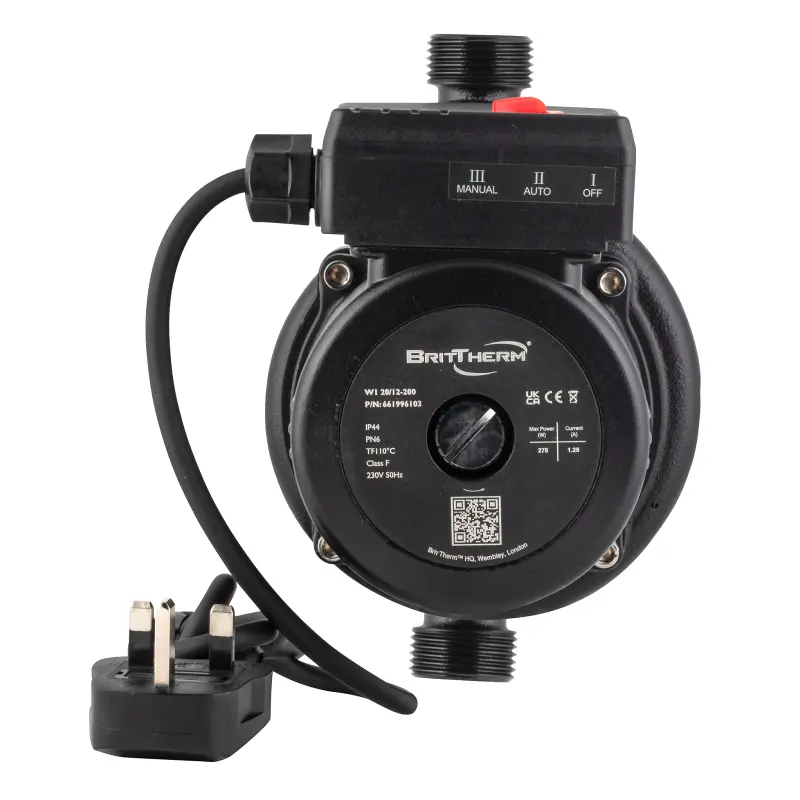

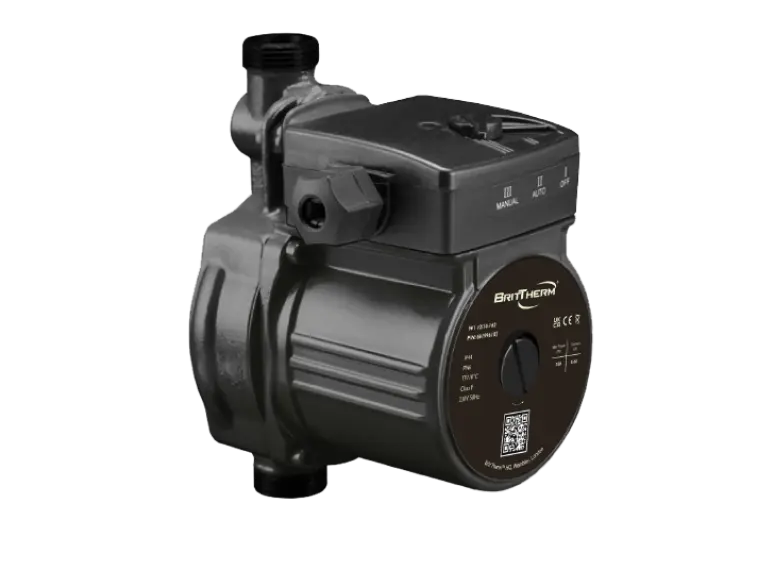

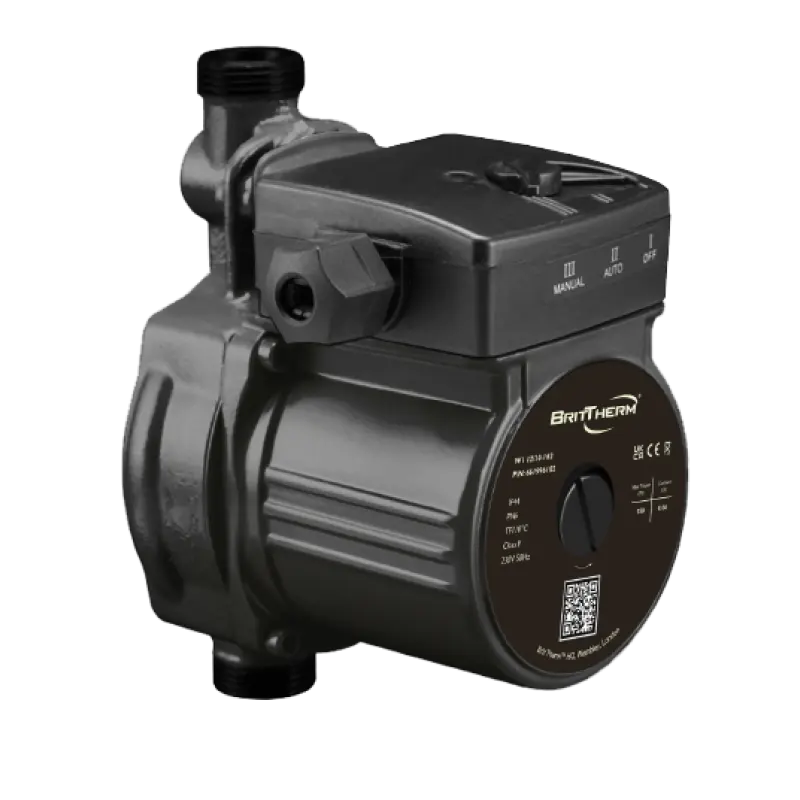

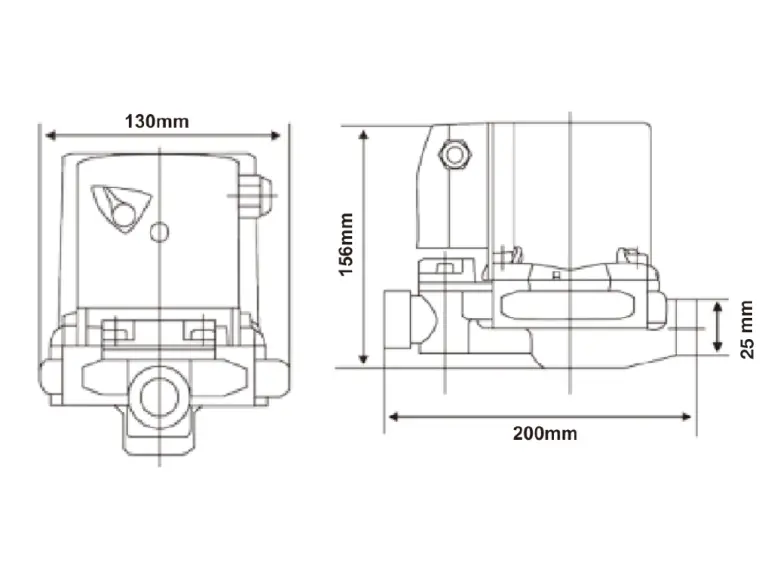

Booster Automatic Pump W1 20/12-200

This booster must be used with water tanks, drawing water directly from them to ensure a stable and consistent supply.

The W1 Series household booster pump is designed with a built-in check valve within the pump casing and features an automatic programme that enables the pump to operate in start/stop mode. This effectively boosts water pressure for showers, taps, and other plumbing points in your home.

The W1 Series epoxy-coated volute pumps offer two operational modes:

- Manual Mode: The pump operates at a constant shaft rotation speed and stays on until manually switched off.

 - AUTO Mode: The automatic programme activates when a tap is opened and deactivates when the tap is closed, responding automatically to changes in flow rate and pressure.

A check valve is integrated into the pump body. The automation, triggered by a single button press, controls the pump in start/stop mode based on water flow and pressure. We recommend using these pumps in conjunction with tanks from which they draw drinking water to supply consumers.

ELECTRICAL AND THERMAL PROTECTION: These safety systems prevent pump breakdown due to external factors unrelated to the pump's operation.

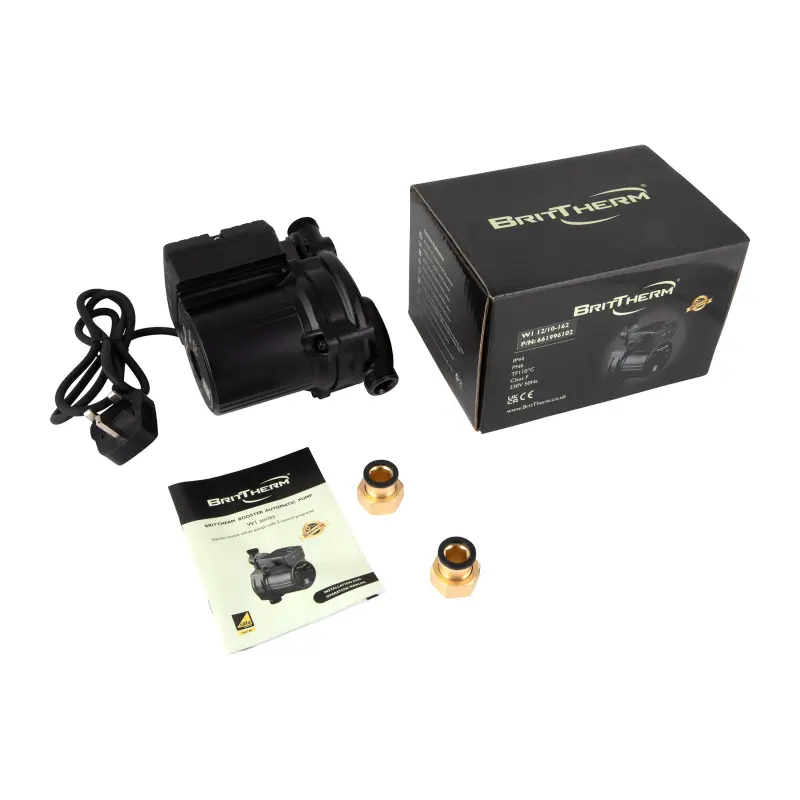

Every BritTherm Pump includes:

• Set of nuts
• 1.3m cable with a UK plug
• Datasheet
• Packaged in sturdy box



Free of charge Insulation Jackets included in every box for the following ranges:

• P1, P2, P3, P4, P5, P6, P7
• B3, B4
• S3, S4, S5, S6



Free of charge PWM Set of Cables included in every box for the following ranges and models:

• P4, P5, P6, S6, H3, H4
• P2 25/8-180
• P2 32/8-180
• P2 25/10-130
• P2 32/10-180
• P2 25/12-130
• P2 32/12-180
