Replacement Pump Head H2 15/7

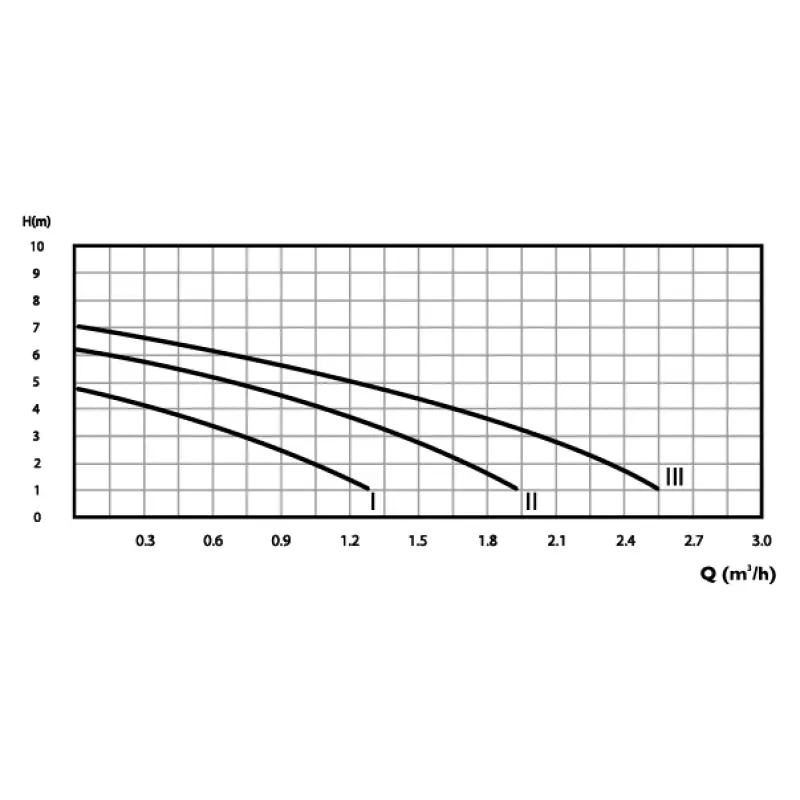

Head in speed III: 7.0 / II: 6.0 / I: 4.0 meter

Power in speed: III: 120 / II: 95 / I: 65 watt

Current in speed: III: 0.52 / II: 0.45 / I: 0.33 ampere

Max Flow: 2.28 м³/hour

Maximum System Pressure: 10 Bar

Protection Class: IP44

Temperature Class: TF 110C

Insulation Class: F

Weight: 1.6 kg

£89INC VAT

Print / PDF Documentation Where to buy

Head in speed

III: 7.0 / II: 6.0 / I: 4.0 meter

Power in speed:

III: 120 / II: 95 / I: 65 watt

Current in speed:

III: 0.52 / II: 0.45 / I: 0.33 ampere

Max Flow:

2.28 м³/hour

Maximum System Pressure:

10 Bar

Protection Class:

IP44

Temperature Class:

TF 110C

Insulation Class:

Weight:

1.6 kg

The H2 Series multi-purpose electric motor (pump head) is a classic and time-tested three-speed motor that is used in all types of pumps with clockwise rotor rotation.

Electric motor rotor speed control is simple - with a standard three-position switch.

Three fixed pump speeds are manually selected using a mechanical switch, allowing to use the entire pump power range.

Very low noise level during pump operation.

Very easy installation of the electric motor using a set of multi-purpose bolts that are supplied complete with the electric motor.

Very simple connection of the pump to the electrical network in the boiler.

Every BritTherm Pump includes:

Set of nuts
1.3m cable with a UK plug
Datasheet
Packaged in sturdy box

Free of charge Insulation Jackets included in every box for the following ranges:

P1, P2, P3, P4, P5, P6, P7
B3, B4
S3, S4, S5, S6

Free of charge PWM Set of Cables included in every box for the following ranges and models:

P4, P5, P6, S6, H3, H4
P2 25/8-180
P2 32/8-180
P2 25/10-130
P2 32/10-180
P2 25/12-130
P2 32/12-180

H2 Instruction Manual
