Circulator Pumps P2 25/12-130

𝗕𝗿𝗶𝘁𝗧𝗵𝗲𝗿𝗺 𝗣𝟮 𝗖𝗶𝗿𝗰𝘂𝗹𝗮𝘁𝗼𝗿 𝗣𝘂𝗺𝗽

𝗕𝗲𝘀𝘁𝘀𝗲𝗹𝗹𝗲𝗿

Heating circulator with nine programs that matches its output to what the system is asking for.

𝗨𝘀𝗲 𝗶𝘁 𝗳𝗼𝗿: radiator circuits in houses and flats · underfloor heating manifolds · systems with thermostatic radiator valves, where the flow demand changes through the day and constant or proportional pressure keeps the valves quiet · zoned systems with two or more motorised valves · larger houses where a fixed speed pump is either too weak at peak or noisy the rest of the time · replacing an older domestic pump and getting the running cost down at the same time

𝗥𝗶𝗴𝗵𝘁 𝗳𝗼𝗿 𝘆𝗼𝘂 𝗶𝗳

• Your heating demand varies and a fixed speed pump is either too weak at peak or wasteful the rest of the time

• You want a lower overnight setting you can select

• You are replacing an older domestic circulator

𝗤𝘂𝗶𝗰𝗸 𝗳𝗮𝗰𝘁𝘀

Connection 1 1/2" or 2" union · Port to port 130 mm or 180 mm · Max head 4 to 12 m · Max flow 2.6 to 7.3 m3/h · Power 5 to 140 W · EEI 0.16 to 0.23 · Max pressure 10 bar · IP44 · TF 95C · Class F · Cast iron body · 18 models · 6 year guarantee when you register the pump

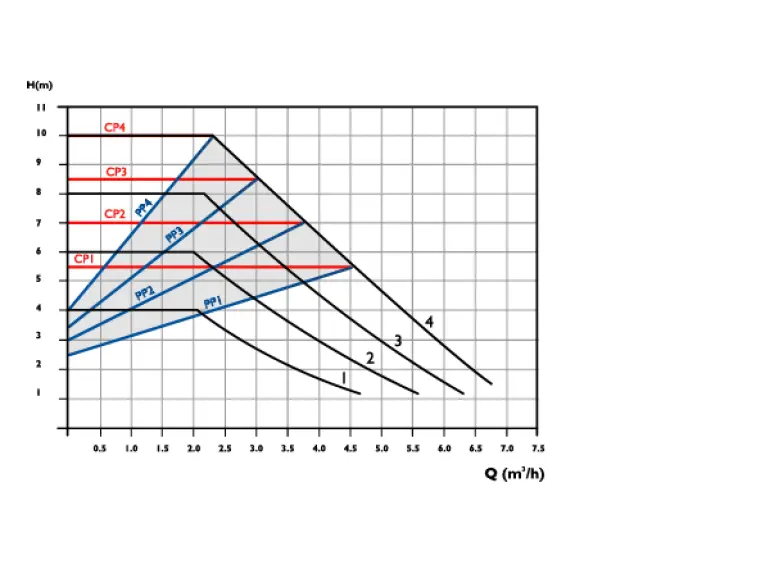

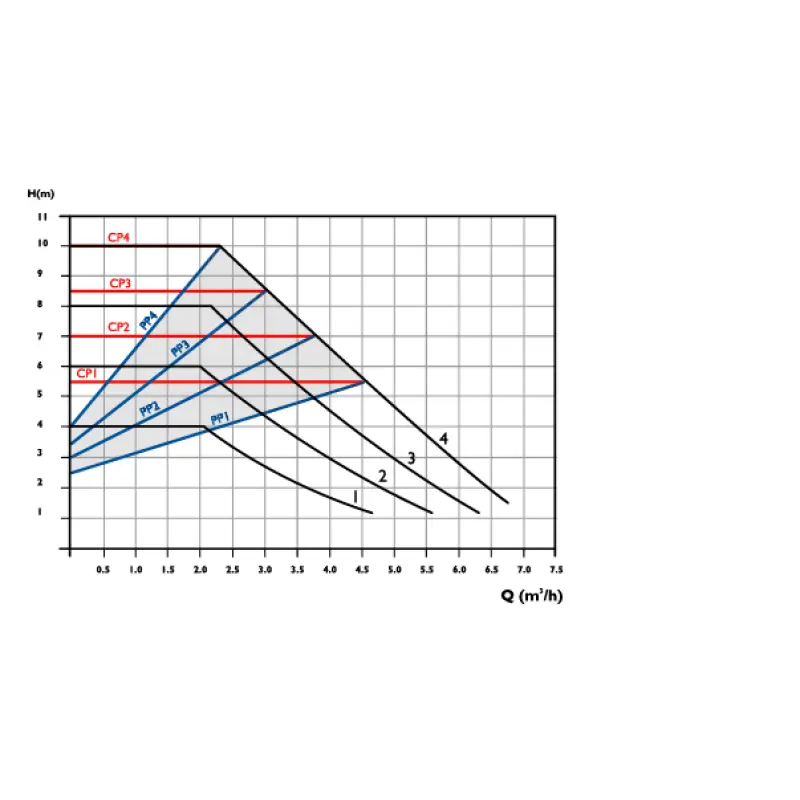

𝗡𝗶𝗻𝗲 𝗽𝗿𝗼𝗴𝗿𝗮𝗺𝘀, 𝗮𝗹𝗹 𝘀𝗲𝘁 𝘄𝗶𝘁𝗵 𝗼𝗻𝗲 𝗯𝘂𝘁𝘁𝗼𝗻

𝗔𝗨𝗧𝗢. The pump works out the right operating range for your system on its own.

𝗖𝗼𝗻𝘀𝘁𝗮𝗻𝘁 𝗽𝗿𝗲𝘀𝘀𝘂𝗿𝗲, 𝗖𝗣𝟭 𝗮𝗻𝗱 𝗖𝗣𝟮. Holds the same pressure whatever the flow rate.

𝗣𝗿𝗼𝗽𝗼𝗿𝘁𝗶𝗼𝗻𝗮𝗹 𝗽𝗿𝗲𝘀𝘀𝘂𝗿𝗲, 𝗣𝗣𝟭 𝗮𝗻𝗱 𝗣𝗣𝟮. Adjusts in proportion to the flow, which saves the most energy.

𝗧𝗵𝗿𝗲𝗲 𝗳𝗶𝘅𝗲𝗱 𝘀𝗽𝗲𝗲𝗱𝘀. The full power range, minimum to maximum.

𝗡𝗶𝗴𝗵𝘁 𝗺𝗼𝗱𝗲. Lower output in the quiet hours.

𝗚𝗼𝗼𝗱 𝘁𝗼 𝗸𝗻𝗼𝘄

Standard 130 mm and 180 mm port to port and standard union sizes, so it usually goes in on the existing pipework. Check the port to port distance and connection size against the old pump before ordering. Cast iron body, for heating circuits. Insulation jacket in the box at no charge. Six P2 models also ship with a free PWM cable set: 25/8-180, 32/8-180, 25/10-130, 32/10-180, 25/12-130 and 32/12-180.

TF 95C is the limit, not the working temperature. Do not run the pump near its maximum for long periods, so do not fit it straight after an oil boiler, or on any system where the temperature is not controlled. Glycol up to 30% is fine, more is not. Flush the system before the pump goes in and check it stays clear of debris afterwards. Dirty water and debris are the usual cause of early pump failure.

𝗣𝟮 𝗼𝗿 𝗣𝟯? Same pump inside. Nine programs, same performance, same job. The difference is the shape of the body. The P3 is built to fit where a standard looking pump will not go, so choose it when the space around the existing pump is tight.

𝗥𝗲𝗽𝗹𝗮𝗰𝗲𝘀: Grundfos UP, UPS2, UPS 4 m, 5 m and 6 m, UPSD 15-50, UPSD 15-60 and UPSD 25-60, Wilo Gold, Gold 50, Gold 60, Gold Star, RS25 and Yonos Pico 15/1-6-130 and 15/1-6-180, DAB Evosta 40/70, Evotron 60/130, VA55/130 and VA65/130, Salus MP100A and MP200A, Stuart Turner ST 15/60 (130 and 180), Lowara Ecocirc, Ecocirc Basic, Ecocirc Premium 25-6 (130 and 180) and Ecocirc Premium 25-40 (130 and 180) and more.

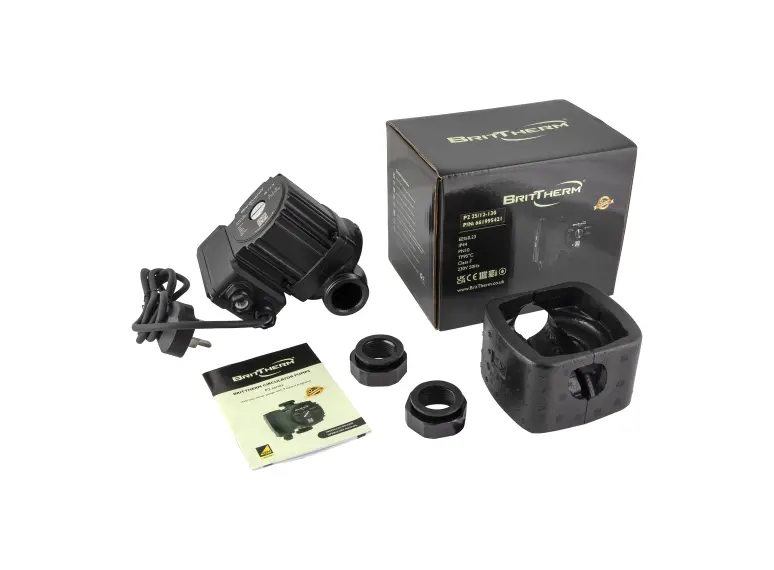

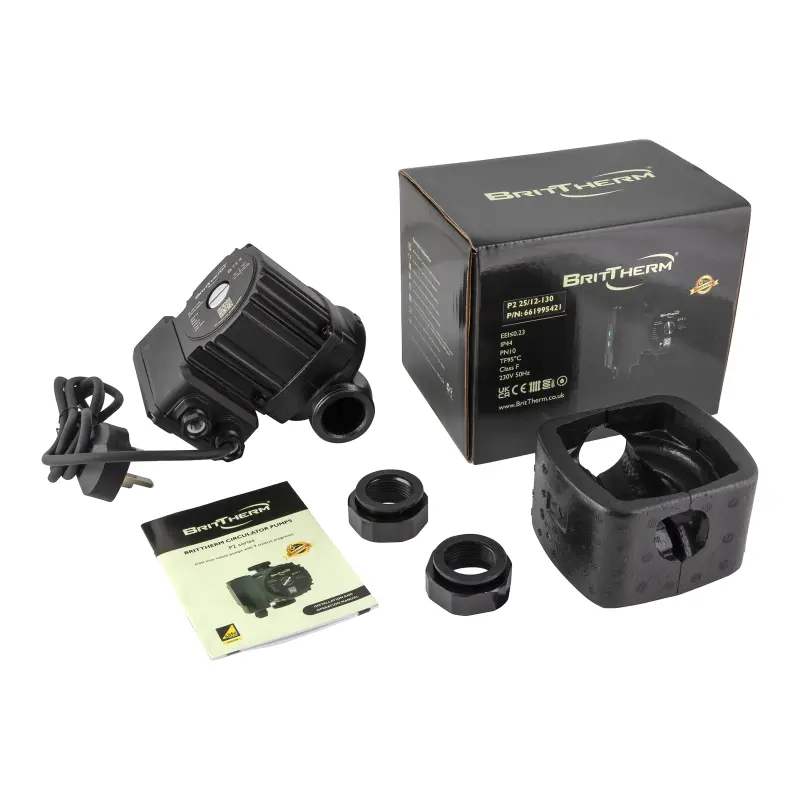

𝗜𝗻 𝘁𝗵𝗲 𝗯𝗼𝘅: pump, set of nuts, 1.3 m cable with UK plug, insulation jacket at no charge, datasheet, in a sturdy box.

Figures are from the BritTherm datasheet for each model. Check the datasheet and the fitting instructions before you order, and have the pump fitted by a competent person. Guarantee subject to registration and the guarantee terms.

• Set of nuts
• 1.3m cable with a UK plug
• Datasheet
• Packaged in sturdy box
• Free of charge Insulation Jacket
• Free of charge PWM Set of Cables
