Circulator Pumps P3 25/6-180

𝗕𝗿𝗶𝘁𝗧𝗵𝗲𝗿𝗺 𝗣𝟯 𝗖𝗶𝗿𝗰𝘂𝗹𝗮𝘁𝗼𝗿 𝗣𝘂𝗺𝗽

Heating circulator with nine programs, in a body shaped to fit where a standard pump will not.

𝗨𝘀𝗲 𝗶𝘁 𝗳𝗼𝗿: everything the P2 does: radiator circuits, underfloor heating, zoned systems with thermostatic or motorised valves · boiler cupboards, kitchen units and under stairs installs where the pump is boxed in and a standard shaped pump will not go · concealed and confined spaces where the control panel still has to be reachable once the pump is in · replacing an older pump in a tight cupboard without cutting the pipework about

𝗥𝗶𝗴𝗵𝘁 𝗳𝗼𝗿 𝘆𝗼𝘂 𝗶𝗳

• The space around the existing pump is tight and a standard shaped pump will not go in

• Your heating demand varies through the day

• You want both a night mode you can select and automatic overnight power saving

𝗤𝘂𝗶𝗰𝗸 𝗳𝗮𝗰𝘁𝘀

Connection 1", 1 1/2" or 2" union · Port to port 130 mm or 180 mm · Max head 4 to 7 m · Max flow 1.8 to 3.7 m3/h · Power 5 to 48 W · EEI 0.17 to 0.22 · Max pressure 10 bar · IP44 · TF 95C · Class F · Cast iron body · 13 models · 6 year guarantee when you register the pump

𝗡𝗶𝗻𝗲 𝗽𝗿𝗼𝗴𝗿𝗮𝗺𝘀, 𝗮𝗹𝗹 𝘀𝗲𝘁 𝘄𝗶𝘁𝗵 𝗼𝗻𝗲 𝗯𝘂𝘁𝘁𝗼𝗻

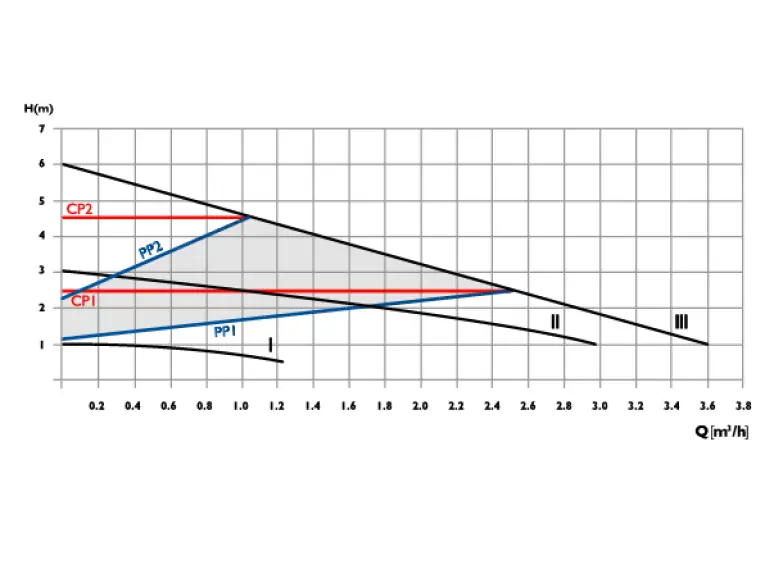

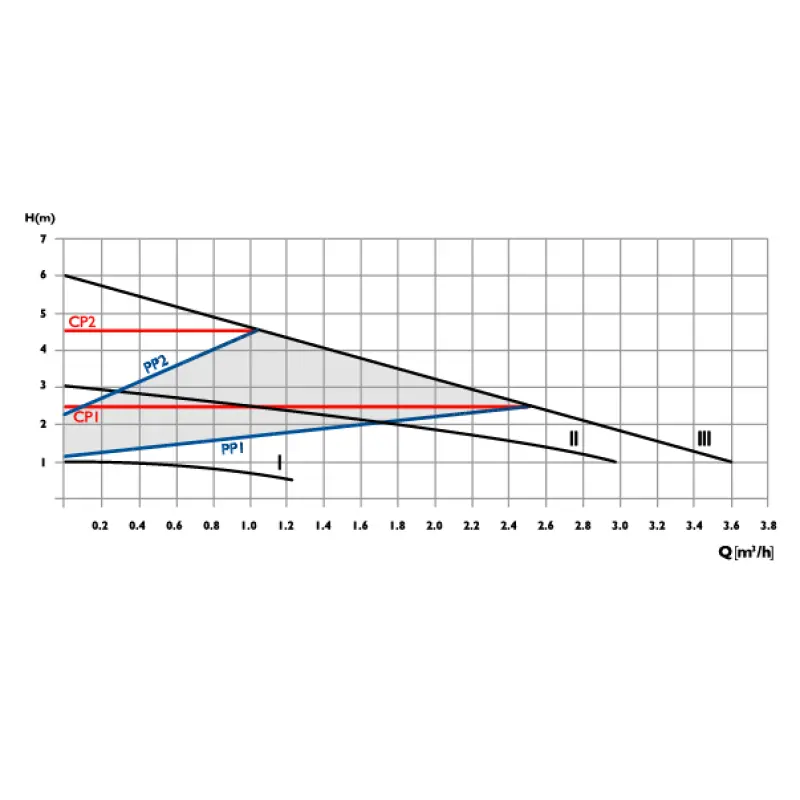

Same set as the P2: AUTO, constant pressure CP1 and CP2, proportional pressure PP1 and PP2, three fixed speeds and night mode.

𝗚𝗼𝗼𝗱 𝘁𝗼 𝗸𝗻𝗼𝘄

The control panel sits where it can still be reached once the pump is in, so the P3 goes into concealed and confined spaces that a standard shaped pump will not fit. Everything else matches the P2.

Standard port to port and union sizes, so it usually goes in on the existing pipework. Check both against the old pump before ordering. Automatic night power reduction to 5 W, built in and separate from the night mode you select. Cast iron body, for heating circuits. Insulation jacket in the box at no charge.

TF 95C is the limit, not the working temperature. Do not run the pump near its maximum for long periods, so do not fit it straight after an oil boiler, or on any system where the temperature is not controlled. Glycol up to 30% is fine, more is not. Flush the system before the pump goes in and check it stays clear of debris afterwards. Dirty water and debris are the usual cause of early pump failure.

𝗣𝟮 𝗼𝗿 𝗣𝟯? Same pump inside. Nine programs, same performance, same job. The difference is the shape of the body. The P3 is built to fit where a standard looking pump will not go, so choose it when the space around the existing pump is tight.

𝗥𝗲𝗽𝗹𝗮𝗰𝗲𝘀: Grundfos UP, UPS2, UPS 4 m, 5 m and 6 m, UPSD 15-50, UPSD 15-60 and UPSD 25-60, Wilo Gold, Gold 50, Gold 60, Gold Star, RS25 and Yonos Pico 15/1-6-130 and 15/1-6-180, DAB Evosta 40/70, Evotron 60/130, VA55/130 and VA65/130, Salus MP100A and MP200A, Stuart Turner ST 15/60 (130 and 180), Lowara Ecocirc, Ecocirc Basic, Ecocirc Premium 25-6 (130 and 180) and Ecocirc Premium 25-40 (130 and 180) and more.

𝗜𝗻 𝘁𝗵𝗲 𝗯𝗼𝘅: pump, set of nuts, 1.3 m cable with UK plug, insulation jacket at no charge, datasheet, in a sturdy box.

Figures are from the BritTherm datasheet for each model. Check the datasheet and the fitting instructions before you order, and have the pump fitted by a competent person. Guarantee subject to registration and the guarantee terms.

• Set of nuts
• 1.3m cable with a UK plug
• Datasheet
• Packaged in sturdy box
• Free of charge Insulation Jacket
