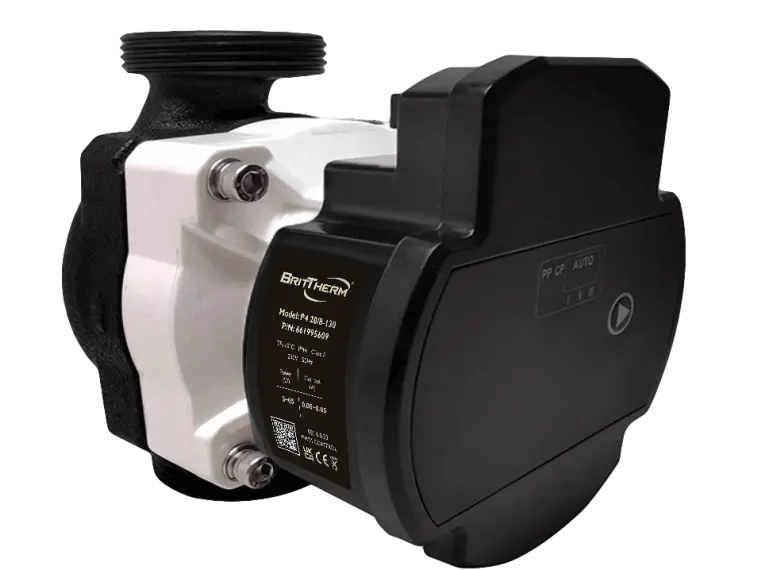

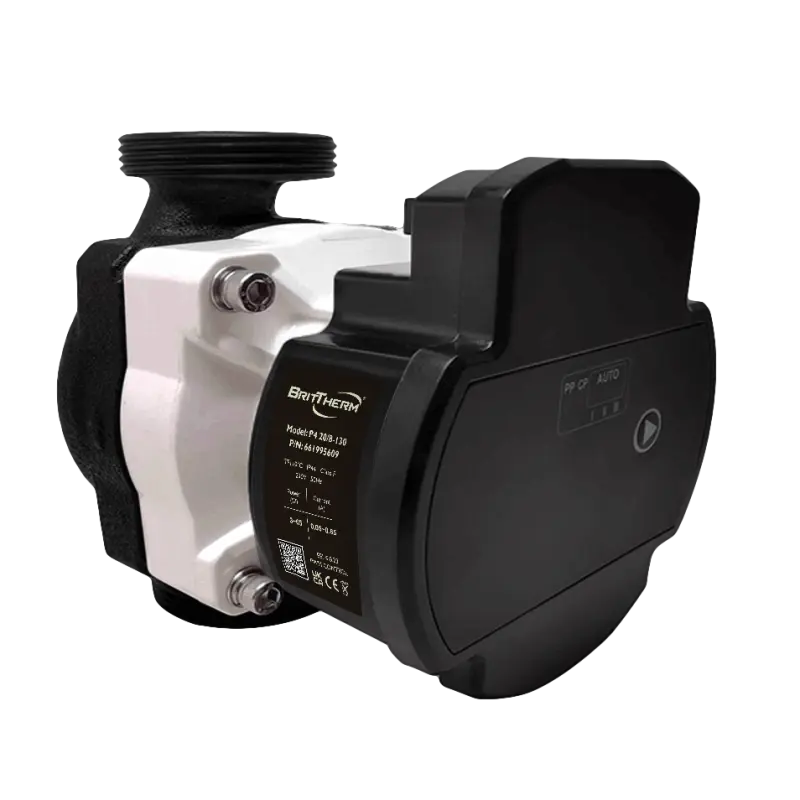

Сirculator Pumps P4 20/8-130
Сirculator Pumps P4 20/8-130
Energy Efficiency Index (EEI) ≤
0.23
Automatic programs:
11
Max Head:
8 meter
Max Flow:
2.9 м³/hour
Power:
3 ~ 65 watt
Current:
0.05 ~ 0.65 ampere
Maximum System Pressure:
10 Bar
Protection Class:
IP44
Temperature Class:
TF 95C
Insulation Class:
F
Color:
White-Black
Material:
Cast Iron
Weight:
2.0 kg
Size of connections:
1"
-
£160INC VAT
-
Energy Efficiency Index (EEI) ≤
0.23
Automatic programs:
11
Max Head:
8 meter
Max Flow:
2.9 м³/hour
Power:
3 ~ 65 watt
Current:
0.05 ~ 0.65 ampere
Maximum System Pressure:
10 Bar
Protection Class:
IP44
Temperature Class:
TF 95C
Insulation Class:
F
Color:
White-Black
Material:
Cast Iron
Weight:
2.0 kg
Size of connections:
1"
The P4 Series Pumps are versatile, suitable for all HVAC applications, including boilers, heat pumps, and Heat Interface Units (HIUs). Each P4 pump includes a PWM function for remote operation control using two low-voltage control cables, compatible with any controllers/thermostats like Siemens, Honeywell, and many more.

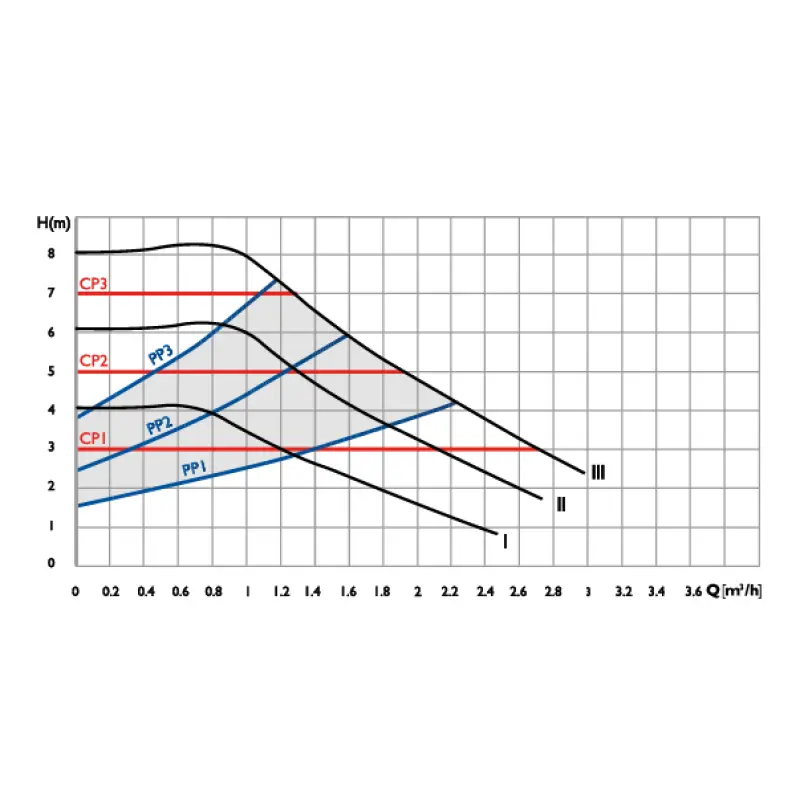

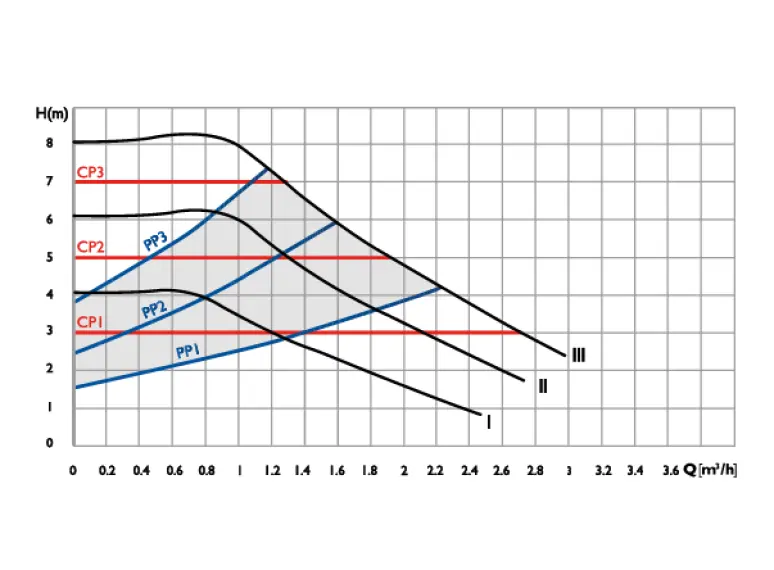

These pumps offer 11 automatic work programmes:
- Three Fixed Speeds ("Old School"): Selectable with one button.
- AUTO Mode: Activated by a single button, suitable for 80% of existing heating systems.
- Three Constant Pressure Modes (CP1, CP2, CP3): Ideal for systems with underfloor heating and minimal flow rate changes.
- Three Proportional Pressure Modes (PP1, PP2, PP3): Suitable for systems with significant flow rate changes.
- PWM Function: Ideal for systems needing remote pump frequency control.
ELECTRICAL AND THERMAL PROTECTION: These safety systems prevent pump breakdown due to external factors unrelated to the pump's operation.
Every BritTherm Pump includes:
- Set of nuts
- 1.3m cable with a UK plug
- Datasheet
- Packaged in sturdy box
Free of charge Insulation Jackets included in every box for the following ranges:
- P1, P2, P3, P4, P5, P6, P7
- B3, B4
- S3, S4, S5, S6
Free of charge PWM Set of Cables included in every box for the following ranges and models:
- P4, P5, P6, S6, H3, H4
- P2 25/8-180
- P2 32/8-180
- P2 25/10-130
- P2 32/10-180
- P2 25/12-130
- P2 32/12-180
