Circulator Pumps P5 15/8-130

𝗕𝗿𝗶𝘁𝗧𝗵𝗲𝗿𝗺 𝗣𝟱 𝗖𝗶𝗿𝗰𝘂𝗹𝗮𝘁𝗼𝗿 𝗣𝘂𝗺𝗽

Heating circulator with ten programs and both PWM profiles, GT and ST.

𝗨𝘀𝗲 𝗶𝘁 𝗳𝗼𝗿: boilers and heat pumps that drive their own pump over PWM and need a specific profile (GT or ST) · heat interface units in flats on communal or district heating · solar thermal primaries with a differential controller · underfloor heating manifolds and zone controllers with a PWM output · smart home and third party controllers, because the PWM input lets any controller drive it · radiator circuits and underfloor heating where no controller is present, on its own programs

𝗥𝗶𝗴𝗵𝘁 𝗳𝗼𝗿 𝘆𝗼𝘂 𝗶𝗳

• The boiler or heat pump controls the pump over PWM and you need a specific profile

• You want pressure control as well as PWM

• You want the insulation shell and PWM cable in the box

𝗤𝘂𝗶𝗰𝗸 𝗳𝗮𝗰𝘁𝘀

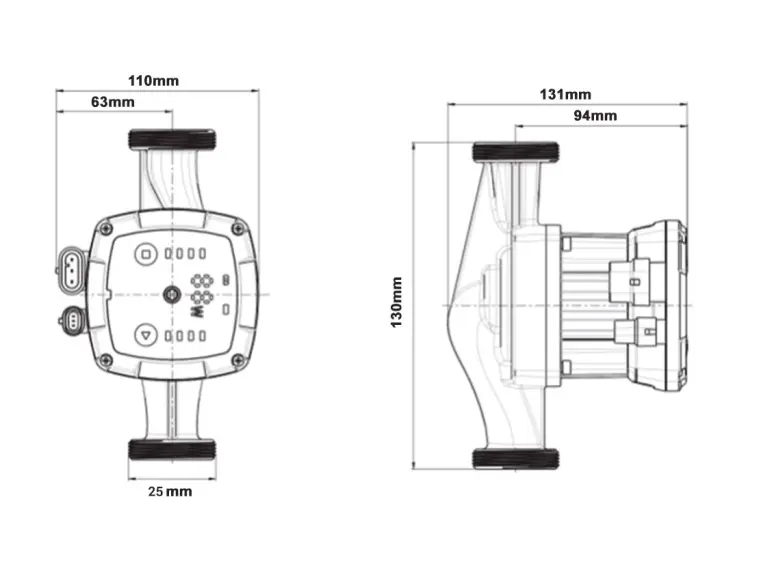

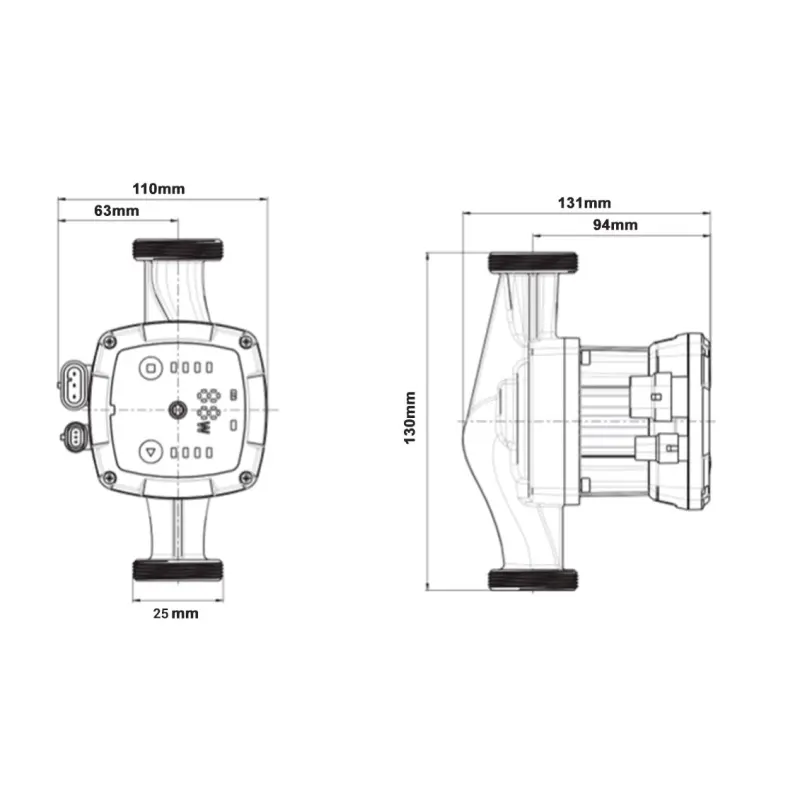

Connection 1", 1 1/2" or 2" union · Port to port 130 mm or 180 mm · Max head 4 to 8 m · Max flow 2.2 to 4.3 m3/h · Power 5 to 52 W · EEI 0.17 to 0.20 · Max pressure 10 bar · IP44 · TF 95C · Class F · Cast iron body · 20 models · 6 year guarantee when you register the pump

𝗧𝗲𝗻 𝗽𝗿𝗼𝗴𝗿𝗮𝗺𝘀, 𝗮𝗹𝗹 𝘀𝗲𝘁 𝘄𝗶𝘁𝗵 𝗼𝗻𝗲 𝗯𝘂𝘁𝘁𝗼𝗻

𝗔𝗨𝗧𝗢. The pump works out the right operating range on its own.

𝗖𝗼𝗻𝘀𝘁𝗮𝗻𝘁 𝗽𝗿𝗲𝘀𝘀𝘂𝗿𝗲, 𝗖𝗣𝟭 𝗮𝗻𝗱 𝗖𝗣𝟮. Holds the same pressure whatever the flow rate.

𝗣𝗿𝗼𝗽𝗼𝗿𝘁𝗶𝗼𝗻𝗮𝗹 𝗽𝗿𝗲𝘀𝘀𝘂𝗿𝗲, 𝗣𝗣𝟭 𝗮𝗻𝗱 𝗣𝗣𝟮. Adjusts in proportion to the flow.

𝗧𝗵𝗿𝗲𝗲 𝗳𝗶𝘅𝗲𝗱 𝘀𝗽𝗲𝗲𝗱𝘀. The full power range.

𝗣𝗪𝗠 𝗚𝗧 𝗮𝗻𝗱 𝗣𝗪𝗠 𝗦𝗧. Two profiles, so the pump matches your boiler, heat pump or solar controller signals. The PWM cable in the box is a universal two-wire lead, so it connects to any thermostat or controller with a PWM output.

𝗚𝗼𝗼𝗱 𝘁𝗼 𝗸𝗻𝗼𝘄

Automatic night power reduction to 5 W, built in. Cast iron body, for heating circuits. PWM cable and insulation shell in the box at no charge.

TF 95C is the limit, not the working temperature. Do not run the pump near its maximum for long periods, so do not fit it straight after an oil boiler, or on any system where the temperature is not controlled. Glycol up to 30% is fine, more is not. Flush the system before the pump goes in and check it stays clear of debris afterwards. Dirty water and debris are the usual cause of early pump failure.

𝗥𝗲𝗽𝗹𝗮𝗰𝗲𝘀: Grundfos UP, UPS2, UPS4, UPS 4 m, 5 m and 6 m, UPSD 15-50, UPSD 15-60 and UPSD 25-60, Wilo Gold, Gold 50, Gold 60, Gold Star, RS25 and Yonos Pico 15/1-6-130 and 15/1-6-180, DAB Evosta 40/70, Evotron 60/130, VA55/130 and VA65/130, Salus MP100A and MP200A, Stuart Turner ST 15/60 (130 and 180), Lowara Ecocirc, Ecocirc Basic, Ecocirc Premium 25-6 (130 and 180) and Ecocirc Premium 25-40 (130 and 180) and more.

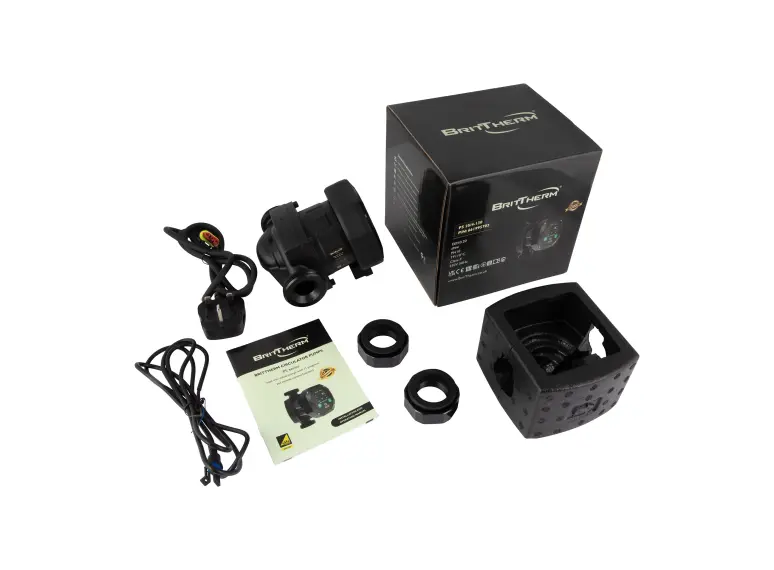

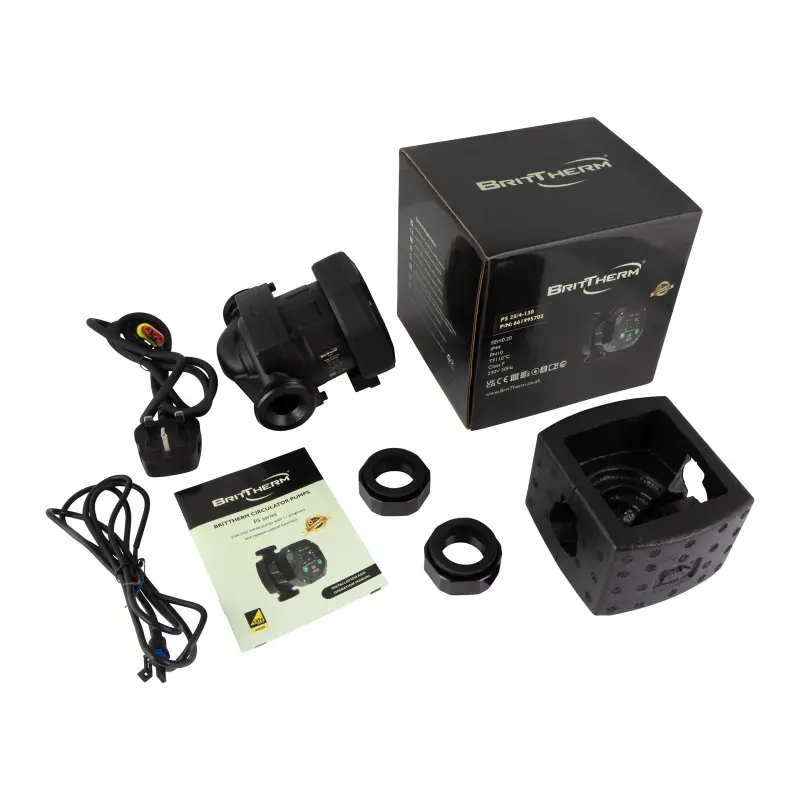

𝗜𝗻 𝘁𝗵𝗲 𝗯𝗼𝘅: pump, set of nuts, 1.3 m cable with UK plug, insulation jacket and PWM cable set at no charge, datasheet, in a sturdy box.

Figures are from the BritTherm datasheet for each model. Check the datasheet and the fitting instructions before you order, and have the pump fitted by a competent person. Guarantee subject to registration and the guarantee terms.

• Set of nuts
• 1.3m cable with a UK plug
• Datasheet
• Packaged in sturdy box
• Free of charge Insulation Jacket
• Free of charge PWM Set of Cables
