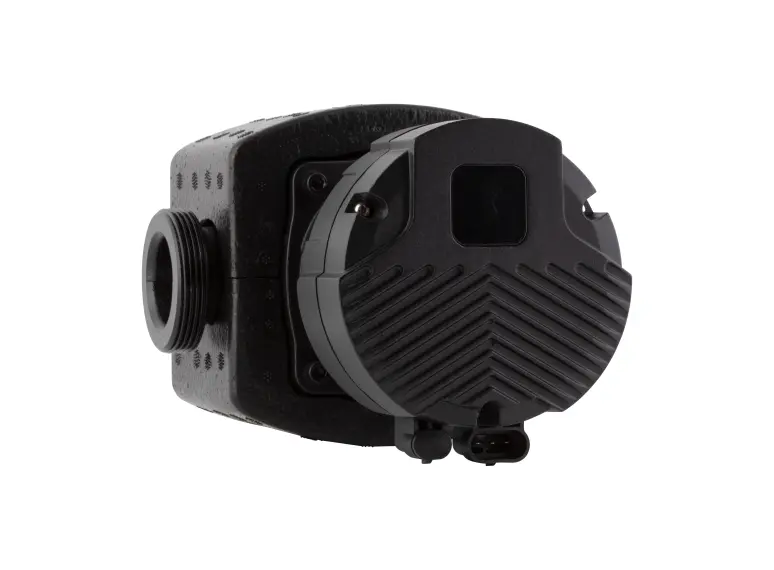

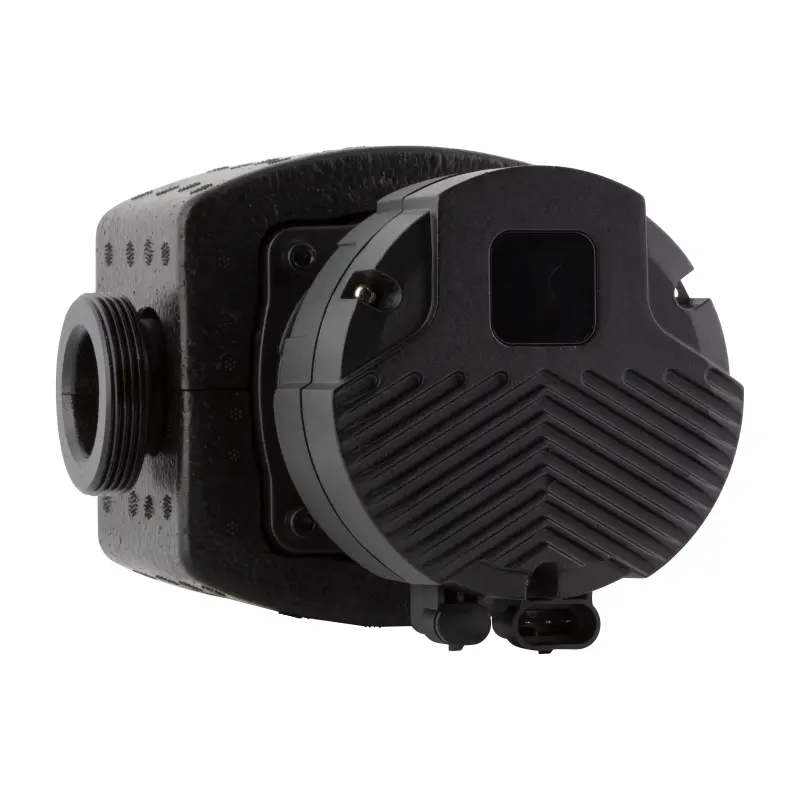

Circulator Pumps P6 25/10-180

𝗕𝗿𝗶𝘁𝗧𝗵𝗲𝗿𝗺 𝗣𝟲 𝗖𝗶𝗿𝗰𝘂𝗹𝗮𝘁𝗼𝗿 𝗣𝘂𝗺𝗽

𝗕𝗲𝘀𝘁𝘀𝗲𝗹𝗹𝗲𝗿

Semi-commercial heating circulator with fourteen programs and PWM, for plant rooms and multi-zone systems.

𝗨𝘀𝗲 𝗶𝘁 𝗳𝗼𝗿: larger heating circuits above domestic size: big houses, blocks of flats, schools, churches, offices, shops and light industrial units · multi-zone systems and plant rooms · commercial heat pump and solar thermal circuits · air handling unit and fan coil heating circuits · boiler primary and secondary loops in plant rooms · buildings where a management system, thermostat or third party controller drives the pump over PWM

𝗥𝗶𝗴𝗵𝘁 𝗳𝗼𝗿 𝘆𝗼𝘂 𝗶𝗳

• The system is bigger than a house and needs more head than a domestic circulator gives

• A building management system, boiler or thermostat drives the pump over PWM

• You are replacing a Grundfos Magna or Wilo Stratos Maxo

𝗤𝘂𝗶𝗰𝗸 𝗳𝗮𝗰𝘁𝘀

Connection 1 1/2" or 2" union · Port to port 180 mm · Max head 10 to 18 m · Max flow 8.6 to 11.9 m3/h · Power 10 to 360 W · EEI 0.22 to 0.23 · Max pressure 10 bar · IP44 · TF 95C · Class F · Cast iron body · 3.8 kg · Eight models · 6 year guarantee when you register the pump

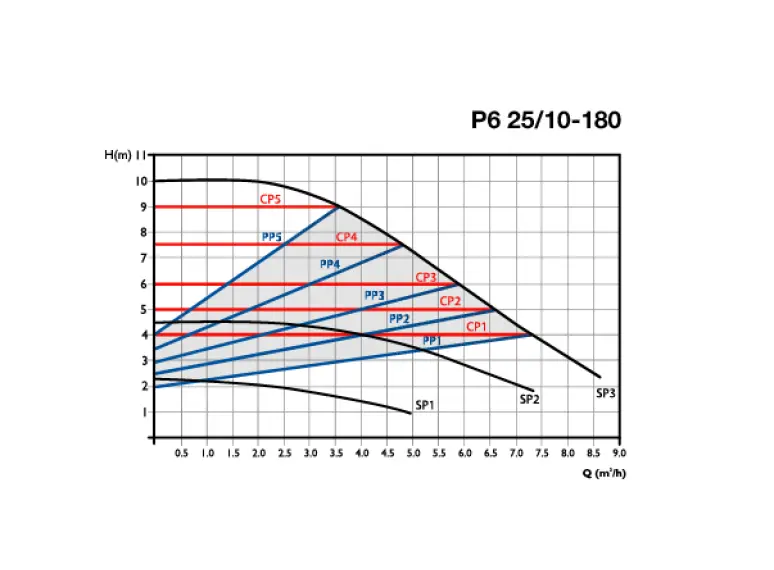

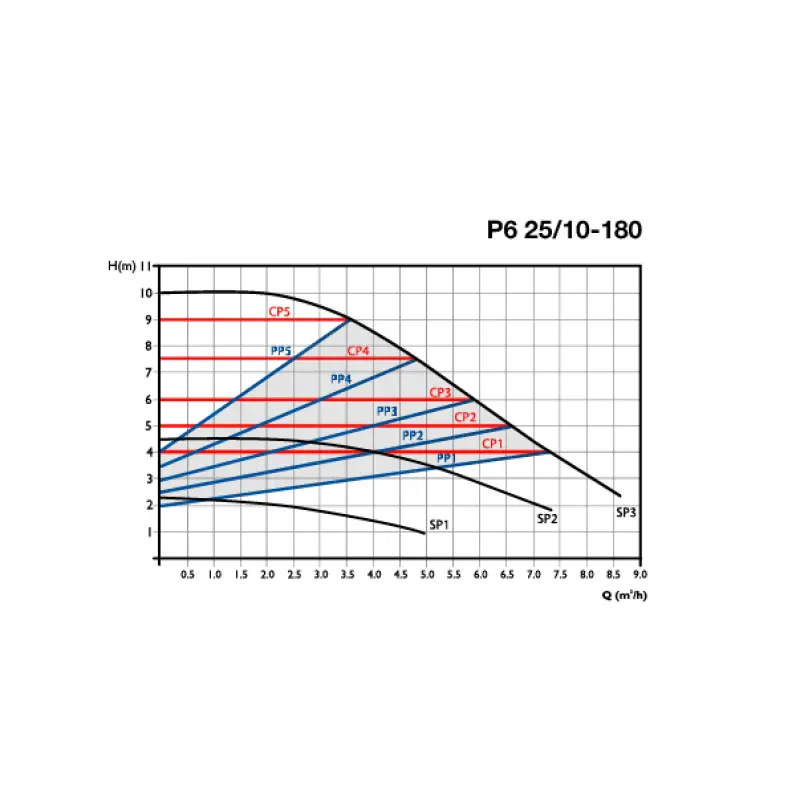

𝗙𝗼𝘂𝗿𝘁𝗲𝗲𝗻 𝗽𝗿𝗼𝗴𝗿𝗮𝗺𝘀, 𝗮𝗹𝗹 𝘀𝗲𝘁 𝘄𝗶𝘁𝗵 𝗼𝗻𝗲 𝗯𝘂𝘁𝘁𝗼𝗻

𝗔𝗨𝗧𝗢. The pump works out the right operating range on its own.

𝗖𝗼𝗻𝘀𝘁𝗮𝗻𝘁 𝗽𝗿𝗲𝘀𝘀𝘂𝗿𝗲, 𝗖𝗣𝟭 𝗮𝗻𝗱 𝗖𝗣𝟮. Holds the same pressure whatever the flow rate.

𝗣𝗿𝗼𝗽𝗼𝗿𝘁𝗶𝗼𝗻𝗮𝗹 𝗽𝗿𝗲𝘀𝘀𝘂𝗿𝗲, 𝗣𝗣𝟭 𝗮𝗻𝗱 𝗣𝗣𝟮. Adjusts in proportion to the flow.

𝗧𝗵𝗿𝗲𝗲 𝗳𝗶𝘅𝗲𝗱 𝘀𝗽𝗲𝗲𝗱𝘀. The full power range.

𝗣𝗪𝗠 𝗚𝗧 𝗮𝗻𝗱 𝗣𝗪𝗠 𝗦𝗧. Two profiles for remote control from a controller or building management system. The PWM cable in the box is a universal two-wire lead, so it connects to any thermostat or controller with a PWM output.

𝗚𝗼𝗼𝗱 𝘁𝗼 𝗸𝗻𝗼𝘄

Cast iron body, for heating circuits. PWM cable and insulation shell in the box at no charge.

TF 95C is the limit, not the working temperature. Do not run the pump near its maximum for long periods, so do not fit it straight after an oil boiler, or on any system where the temperature is not controlled. Glycol up to 30% is fine, more is not. Flush the system before the pump goes in and check it stays clear of debris afterwards. Dirty water and debris are the usual cause of early pump failure.

𝗥𝗲𝗽𝗹𝗮𝗰𝗲𝘀: Grundfos Magna, Wilo Yonos Maxo and Stratos Maxo, Lowara Ecocirc XL and more.

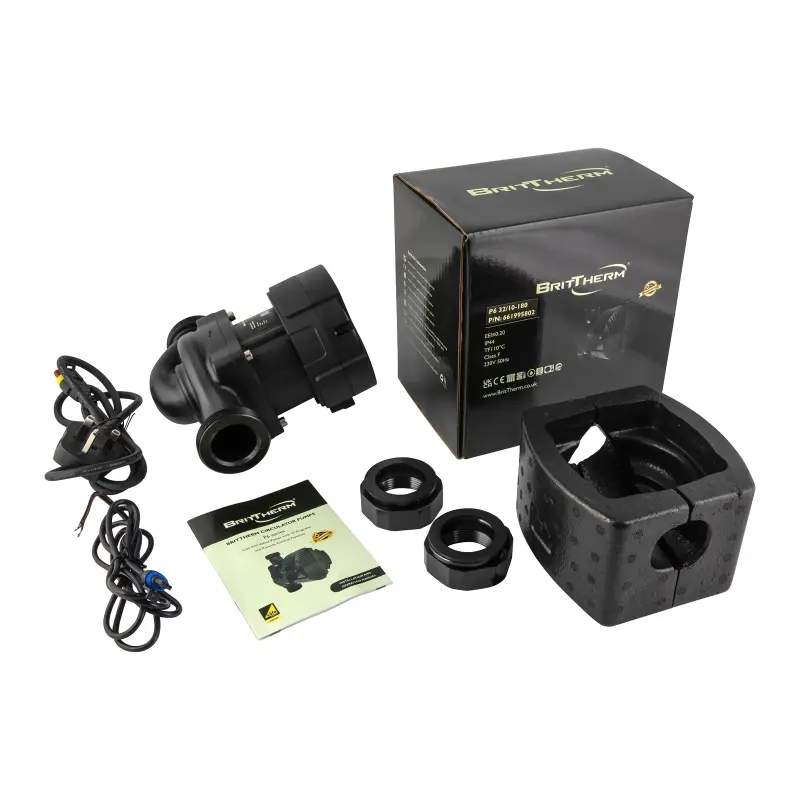

𝗜𝗻 𝘁𝗵𝗲 𝗯𝗼𝘅: pump, set of nuts, 1.3 m cable with UK plug, insulation jacket and PWM cable set at no charge, datasheet, in a sturdy box.

Figures are from the BritTherm datasheet for each model. Check the datasheet and the fitting instructions before you order, and have the pump fitted by a competent person. Guarantee subject to registration and the guarantee terms.

• Set of nuts
• 1.3m cable with a UK plug
• Datasheet
• Packaged in sturdy box
• Free of charge Insulation Jacket
• Free of charge PWM Set of Cables
