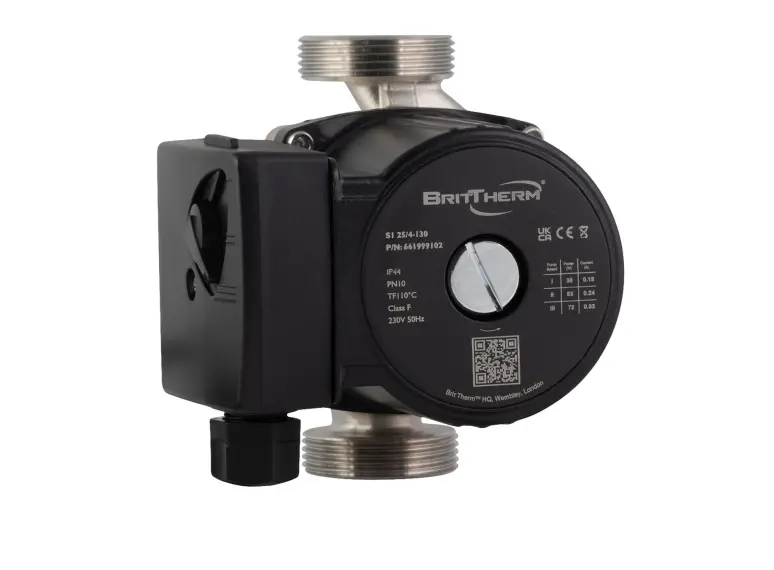

Circulator Pumps S1 25/4-130

𝗕𝗿𝗶𝘁𝗧𝗵𝗲𝗿𝗺 𝗦𝟭 𝗖𝗶𝗿𝗰𝘂𝗹𝗮𝘁𝗼𝗿 𝗣𝘂𝗺𝗽

𝗕𝗲𝘀𝘁𝘀𝗲𝗹𝗹𝗲𝗿

Stainless steel three speed circulator for hot and cold drinking water.

𝗨𝘀𝗲 𝗶𝘁 𝗳𝗼𝗿: secondary hot water returns in houses and flats, so the tap runs hot without the wait · cylinder loops on vented and unvented cylinders · hot water loops in dental practices, doctors’ surgeries, vets, hairdressers, beauty salons and tattoo studios, where the water at the tap has to be hot and the premises are inspected · commercial kitchens, cafes, bakeries and food premises · dairies, milking parlours and farms, where hot wash-down water has to be ready on demand · small food, drink and cosmetics processing rooms, on the hot water and rinse water side · treated or softened water where a cast iron or bronze body is not wanted (check any dosing chemical against the datasheet) · hotels, guest houses and care homes · any drinking water loop that wants a set speed left alone

𝗥𝗶𝗴𝗵𝘁 𝗳𝗼𝗿 𝘆𝗼𝘂 𝗶𝗳

• The water is drinkable and you want a stainless body

• You want three fixed speeds rather than automatic control

• You are replacing an older secondary return pump

𝗤𝘂𝗶𝗰𝗸 𝗳𝗮𝗰𝘁𝘀

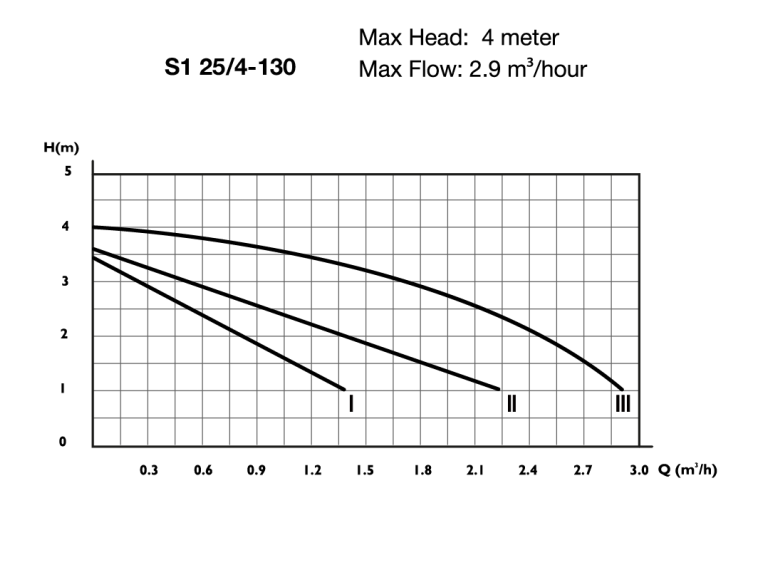

EN 1.4521 stainless steel casing · Connection 1" or 1 1/2" union · Port to port 130 mm or 180 mm · Max head 4 or 6 m · Max flow 2.3 to 3.3 m3/h · Power 72 or 93 W · Max pressure 10 bar · IP44 · Class F · Six models · Rated to 110C · 6 year guarantee when you register the pump

𝗛𝗼𝘄 𝗶𝘁 𝗿𝘂𝗻𝘀

Three fixed speeds on a mechanical switch, covering the pump’s full power range. Set once at commissioning and left.

𝗚𝗼𝗼𝗱 𝘁𝗼 𝗸𝗻𝗼𝘄

Stainless casing, so it suits drinking water. Electrical and thermal protection is built in, designed to protect the motor against wiring faults and voltage spikes.

𝗕𝗿𝗼𝗻𝘇𝗲 𝗼𝗿 𝘀𝘁𝗮𝗶𝗻𝗹𝗲𝘀𝘀? Both suit drinking water and perform the same. Bronze is the traditional choice for a house. Stainless is the one to reach for where hygiene is inspected or the water is treated or softened: clinics, salons, food premises, dairies and farms, or anywhere the rest of the installation is stainless.

𝗥𝗲𝗽𝗹𝗮𝗰𝗲𝘀: Grundfos UPS 25-60 N and UPS 15-50N, Wilo SB30 and Star-Z 25/6, Lowara Ecocirc Basic N, Stuart Turner 15/60B DHW and more.

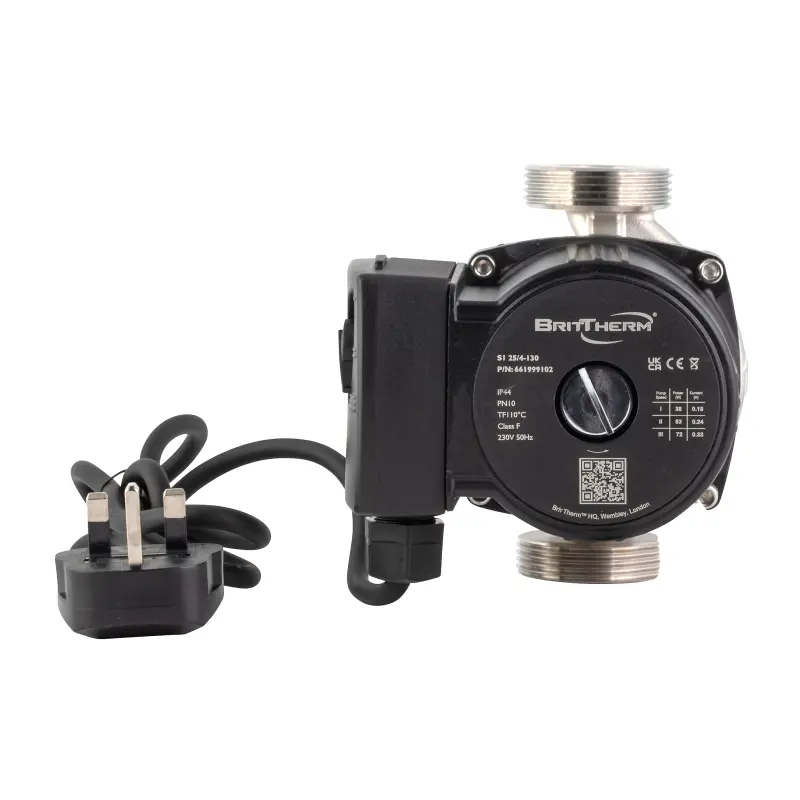

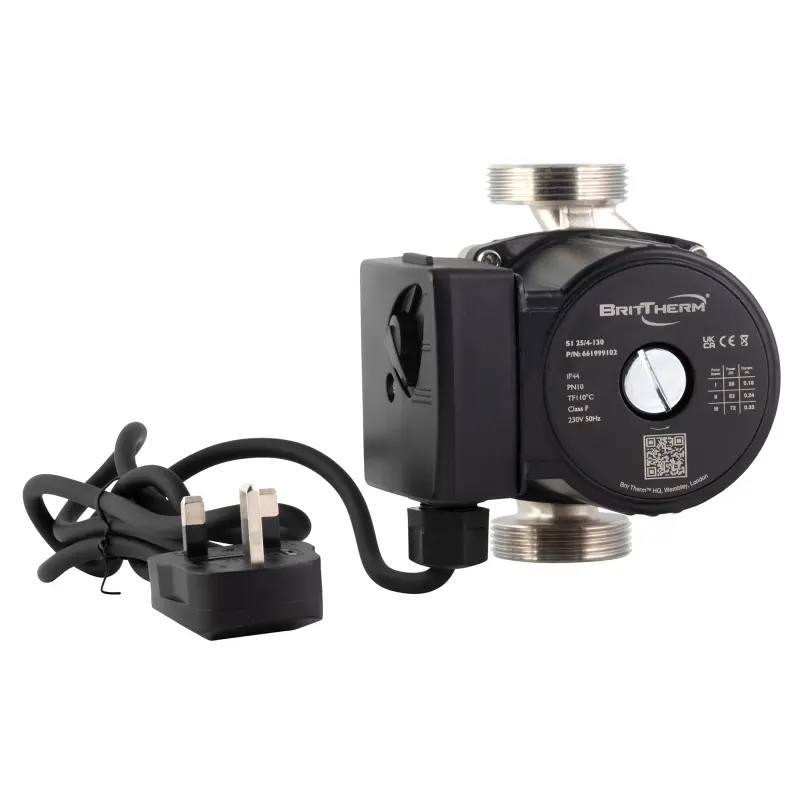

𝗜𝗻 𝘁𝗵𝗲 𝗯𝗼𝘅: pump, set of nuts, 1.3 m cable with UK plug, datasheet, in a sturdy box.

Figures are from the BritTherm datasheet for each model. Check the datasheet and the fitting instructions before you order, and have the pump fitted by a competent person. Guarantee subject to registration and the guarantee terms.

• Set of nuts
• 1.3m cable with a UK plug
• Datasheet
• Packaged in sturdy box
