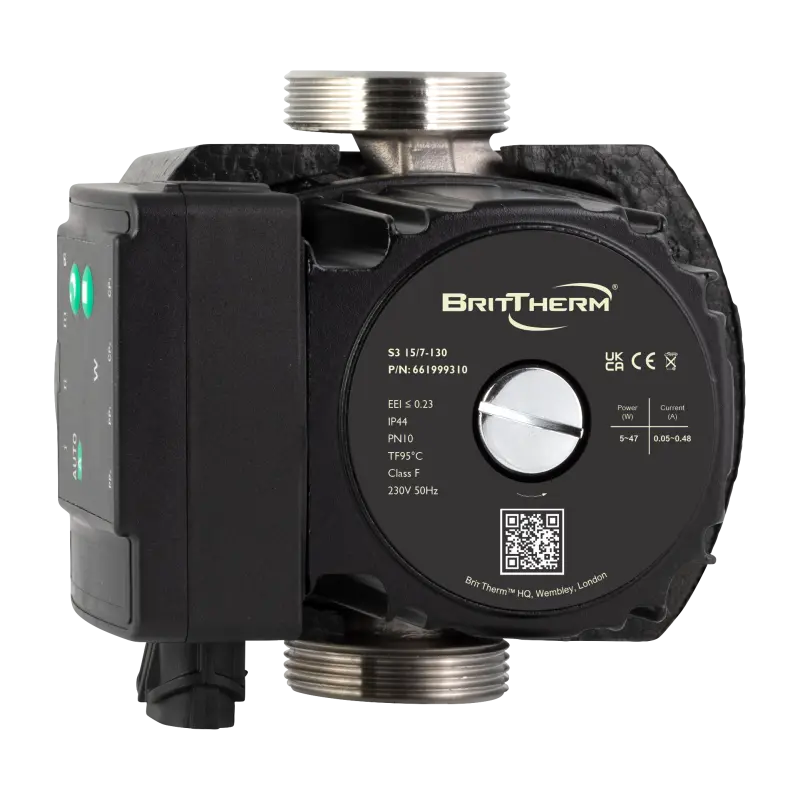

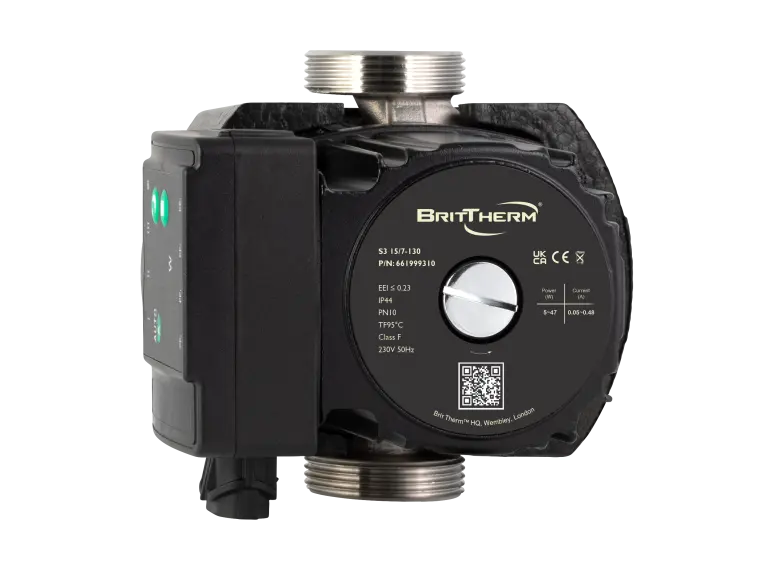

Circulator Pumps S3 15/7-130

𝗕𝗿𝗶𝘁𝗧𝗵𝗲𝗿𝗺 𝗦𝟯 𝗖𝗶𝗿𝗰𝘂𝗹𝗮𝘁𝗼𝗿 𝗣𝘂𝗺𝗽

Stainless steel circulator with nine programs for drinking water circulation and recirculation.

𝗨𝘀𝗲 𝗶𝘁 𝗳𝗼𝗿: secondary hot water returns in houses and flats where the demand swings through the day · cylinder loops on vented and unvented cylinders · hot water loops in dental practices, doctors' surgeries, vets, hairdressers, beauty salons and tattoo studios · commercial kitchens, cafes, bakeries and food premises · dairies, milking parlours and farms, where hot wash-down water has to be ready on demand · small food, drink and cosmetics processing rooms, on the hot water and rinse water side · treated or softened water where a cast iron or bronze body is not wanted (check any dosing chemical against the datasheet) · hotels, guest houses, care homes and student halls · any drinking water loop where a pump that matches its output to demand will cut the running cost

𝗥𝗶𝗴𝗵𝘁 𝗳𝗼𝗿 𝘆𝗼𝘂 𝗶𝗳

• The water is drinkable and you want a stainless body

• You want the pump to match its output to demand instead of running flat out

• You want a lower overnight setting you can select

𝗤𝘂𝗶𝗰𝗸 𝗳𝗮𝗰𝘁𝘀

EN 1.4521 stainless steel casing · Connection 1" or 1 1/2" union · Twelve models · Port to port 130 mm or 180 mm · Max head 4 to 7 m · Max flow 1.8 to 3.7 m3/h · Power 5 to 47 W · EEI 0.16 to 0.21 · Max pressure 10 bar · IP44 · TF 95C · Class F · 6 year guarantee when you register the pump

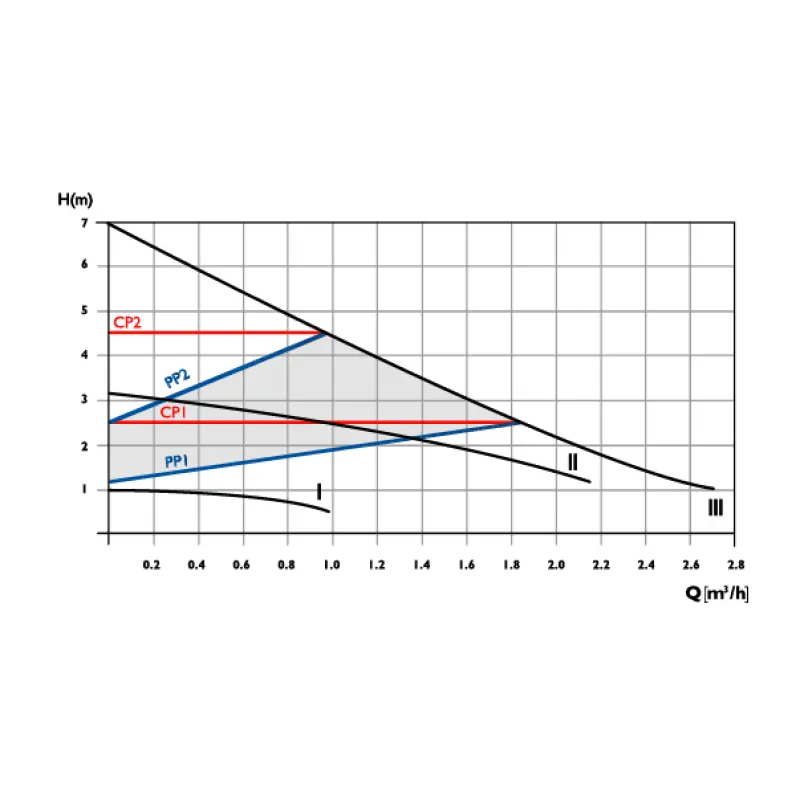

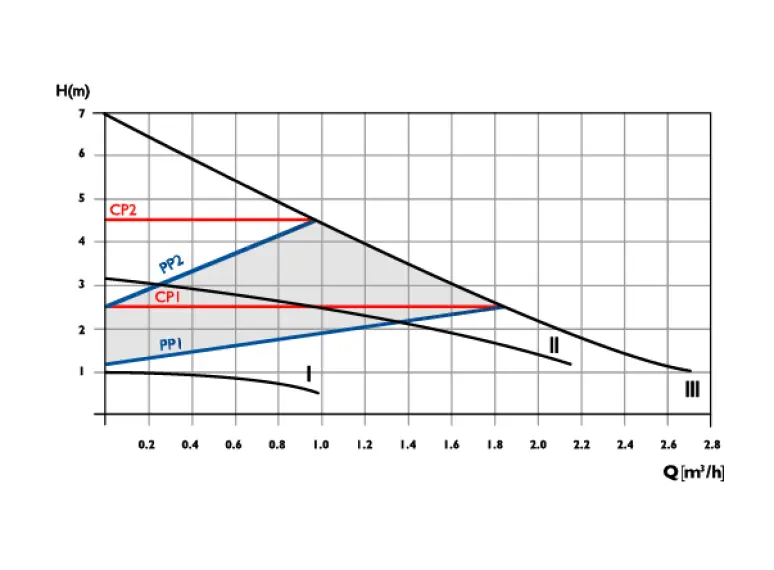

𝗡𝗶𝗻𝗲 𝗽𝗿𝗼𝗴𝗿𝗮𝗺𝘀, 𝗮𝗹𝗹 𝘀𝗲𝘁 𝘄𝗶𝘁𝗵 𝗼𝗻𝗲 𝗯𝘂𝘁𝘁𝗼𝗻

𝗔𝗨𝗧𝗢. The pump works out the right operating range for your system on its own.

𝗖𝗼𝗻𝘀𝘁𝗮𝗻𝘁 𝗽𝗿𝗲𝘀𝘀𝘂𝗿𝗲, 𝗖𝗣𝟭 𝗮𝗻𝗱 𝗖𝗣𝟮. Holds the same pressure whatever the flow rate.

𝗣𝗿𝗼𝗽𝗼𝗿𝘁𝗶𝗼𝗻𝗮𝗹 𝗽𝗿𝗲𝘀𝘀𝘂𝗿𝗲, 𝗣𝗣𝟭 𝗮𝗻𝗱 𝗣𝗣𝟮. Adjusts in proportion to the flow, which saves the most energy.

𝗧𝗵𝗿𝗲𝗲 𝗳𝗶𝘅𝗲𝗱 𝘀𝗽𝗲𝗲𝗱𝘀. The full power range, minimum to maximum.

𝗡𝗶𝗴𝗵𝘁 𝗺𝗼𝗱𝗲. Drops to 5 W in the quiet hours without losing the system.

𝗚𝗼𝗼𝗱 𝘁𝗼 𝗸𝗻𝗼𝘄

Stainless casing, so it suits drinking water. Down to 5 W when demand is low. Electrical and thermal protection is built in. Insulation jacket in the box at no charge.

𝗥𝗲𝗽𝗹𝗮𝗰𝗲𝘀: Grundfos Alpha2 25-60 N and UPS 25-60 N, Wilo Yonos PICO-Z 25/0.5-6 and Star-Z 25/6, DAB Evosta 2 SAN, Lowara Ecocirc M 25-6 N and Ecocirc L 25-8 N and more.

𝗜𝗻 𝘁𝗵𝗲 𝗯𝗼𝘅: pump, set of nuts, 1.3 m cable with UK plug, insulation jacket at no charge, datasheet, in a sturdy box.

Figures are from the BritTherm datasheet for each model. Check the datasheet and the fitting instructions before you order, and have the pump fitted by a competent person. Guarantee subject to registration and the guarantee terms.

• Set of nuts
• 1.3m cable with a UK plug
• Datasheet
• Packaged in sturdy box
• Free of charge Insulation Jacket
