Circulator Pumps S4 25/5-130

𝗕𝗿𝗶𝘁𝗧𝗵𝗲𝗿𝗺 𝗦𝟰 𝗖𝗶𝗿𝗰𝘂𝗹𝗮𝘁𝗼𝗿 𝗣𝘂𝗺𝗽

𝗕𝗲𝘀𝘁𝘀𝗲𝗹𝗹𝗲𝗿

Stainless steel circulator with nine programs for drinking water, in the compact body for 180 mm port to port and for spaces a standard pump will not fit.

𝗨𝘀𝗲 𝗶𝘁 𝗳𝗼𝗿: everything the S3 does: secondary hot water returns, cylinder loops, dental and medical practices, salons, commercial kitchens, dairies and farms, small processing rooms, treated or softened water, hotels and care homes · airing cupboards, boxed in cylinder cupboards and plant room corners where a standard shaped pump will not go and the control panel still has to be reachable · 180 mm port to port pipework

𝗥𝗶𝗴𝗵𝘁 𝗳𝗼𝗿 𝘆𝗼𝘂 𝗶𝗳

• The water is drinkable and you want a stainless body

• Your pipework measures 180 mm between the union centres, or the space around the pump is tight

• You want the pump to match its output to demand instead of running flat out

𝗤𝘂𝗶𝗰𝗸 𝗳𝗮𝗰𝘁𝘀

EN 1.4521 stainless steel casing · Connection 1" or 1 1/2" union · Twelve models · Port to port 130 mm or 180 mm · Max head 4 to 7 m · Max flow 1.8 to 3.7 m3/h · Power 5 to 47 W · EEI 0.17 to 0.22 · Max pressure 10 bar · IP44 · TF 95C · Class F · 6 year guarantee when you register the pump

𝗡𝗶𝗻𝗲 𝗽𝗿𝗼𝗴𝗿𝗮𝗺𝘀, 𝗮𝗹𝗹 𝘀𝗲𝘁 𝘄𝗶𝘁𝗵 𝗼𝗻𝗲 𝗯𝘂𝘁𝘁𝗼𝗻

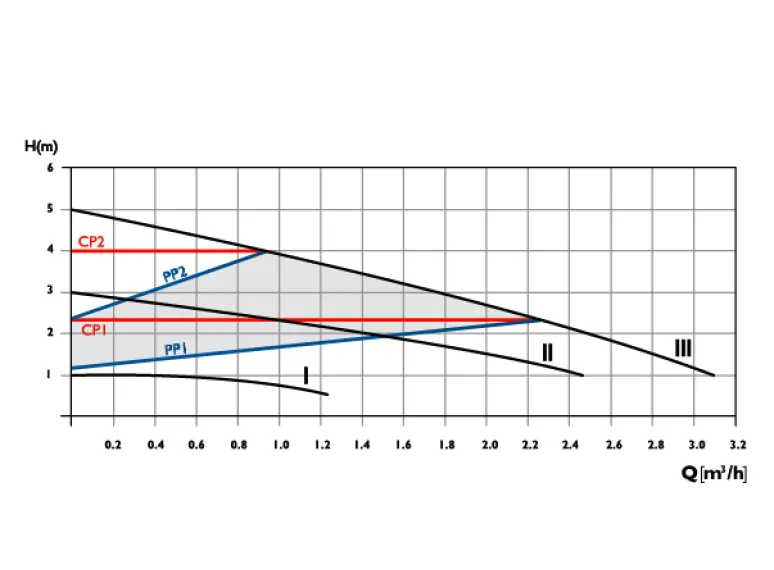

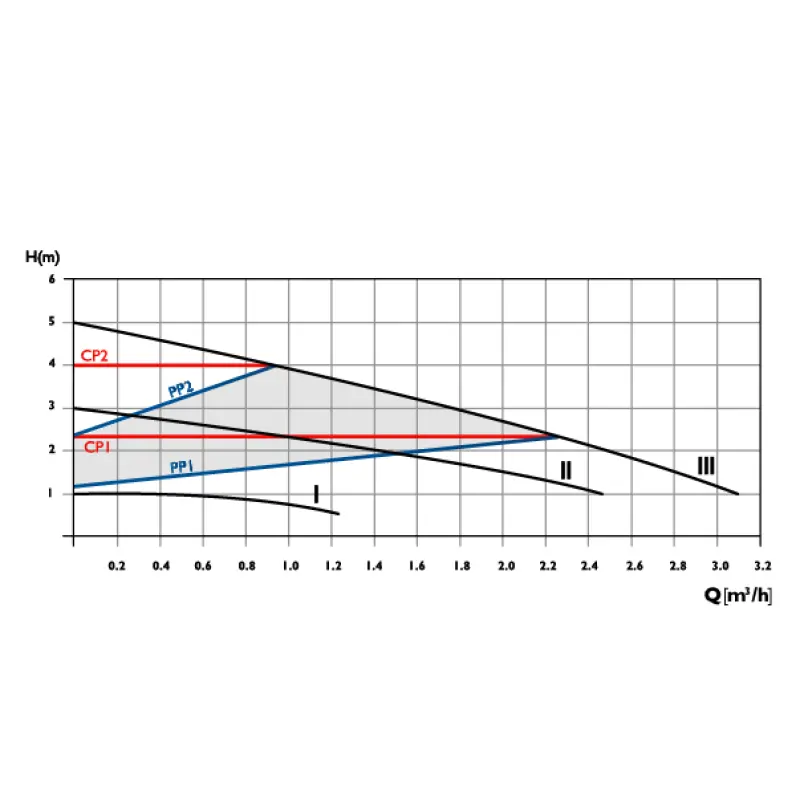

Same set as the S3: AUTO, constant pressure CP1 and CP2, proportional pressure PP1 and PP2, three fixed speeds and night mode at 5 W.

𝗚𝗼𝗼𝗱 𝘁𝗼 𝗸𝗻𝗼𝘄

The control panel sits where it can still be reached once the pump is in, so the S4 goes into concealed and confined spaces that a standard shaped pump will not fit. Stainless casing, so it suits drinking water. Electrical and thermal protection is built in. Insulation jacket in the box at no charge.

𝗦𝟯 𝗼𝗿 𝗦𝟰? Same pump inside, nine programs, same job. Two differences. The S3 is the standard body at 130 mm port to port. The S4 is the compact body, built to fit where a standard looking pump will not go, at 180 mm port to port. Measure between the centres of your two unions and look at the space around the pump, and the choice makes itself.

𝗥𝗲𝗽𝗹𝗮𝗰𝗲𝘀: Grundfos Alpha2 25-60 N and UPS 25-60 N, Wilo Yonos PICO-Z 25/0.5-6 and Star-Z 25/6, DAB Evosta 2 SAN, Lowara Ecocirc M 25-6 N and Ecocirc L 25-8 N and more.

𝗜𝗻 𝘁𝗵𝗲 𝗯𝗼𝘅: pump, set of nuts, 1.3 m cable with UK plug, insulation jacket at no charge, datasheet, in a sturdy box.

Figures are from the BritTherm datasheet for each model. Check the datasheet and the fitting instructions before you order, and have the pump fitted by a competent person. Guarantee subject to registration and the guarantee terms.

• Set of nuts
• 1.3m cable with a UK plug
• Datasheet
• Packaged in sturdy box
• Free of charge Insulation Jacket
