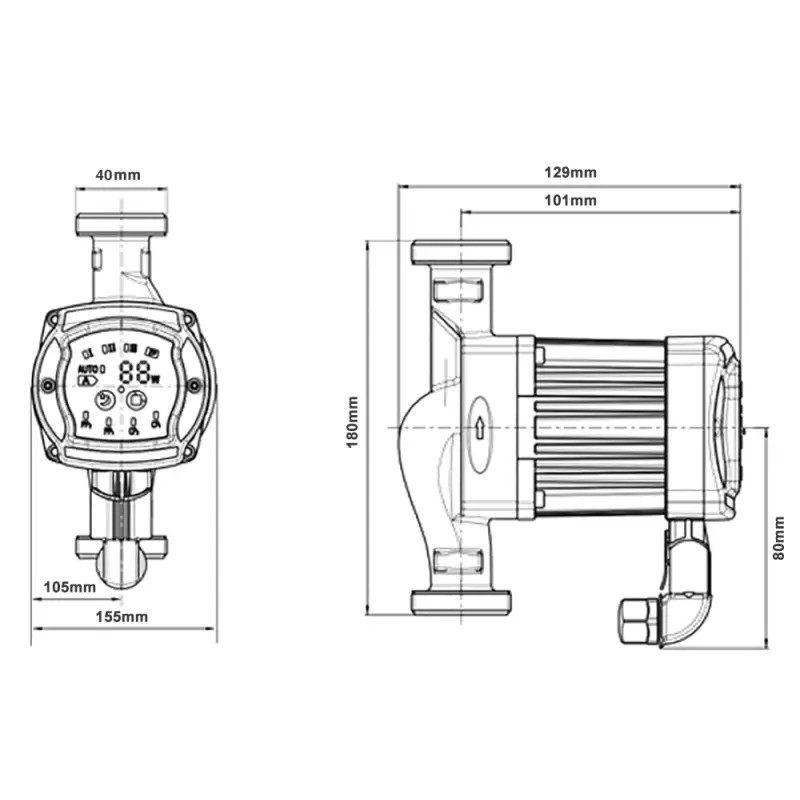

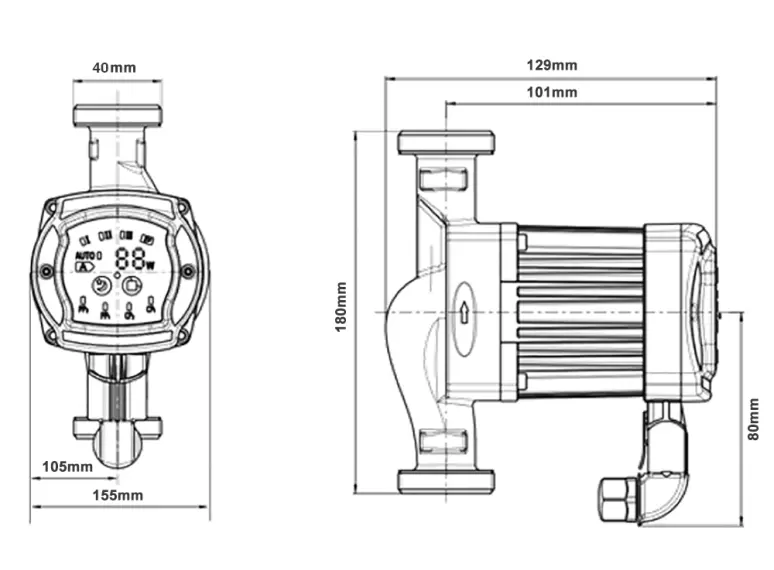

Сirculator Pumps S4 25/7-180

The S4 Series Pump is a modern, intelligent automatic pump with a stainless steel EN1.4521 type casing and 9 intelligent operating modes for the circulation and recirculation of clean potable water, adaptable to the tasks and specifications of the water supply system.

- Three Fixed Pump Speeds (“Old School”): Selectable by the touch of a single button, allowing the use of the entire range of pump power.

- AUTO Mode: Activated by pressing one button, the automation determines the optimal operating range of the pump for the current circulation and recirculation system, minimising energy consumption without compromising performance.

- Two Constant Pressure Operating Modes (CP1 and CP2): Maintain constant pressure in circulation and recirculation systems, regardless of flow rate.

- Two Proportional Pressure Operating Modes (PP1 and PP2): Adjust the pump operation in proportion to flow rate changes, ensuring optimal performance based on system demands.

- Night Operating Mode: Reduces energy consumption to 5 watts, maintaining system quality without unnecessary operation during low-demand periods.

Electrical and Thermal Protection: Safety systems that prevent pump breakdown due to external reasons not related to the operation of pump systems.

Every BritTherm Pump includes:

• Set of nuts
• 1.3m cable with a UK plug
• Datasheet
• Packaged in sturdy box



Free of charge Insulation Jackets included in every box for the following ranges:

• P1, P2, P3, P4, P5, P6, P7
• B3, B4
• S3, S4, S5, S6



Free of charge PWM Set of Cables included in every box for the following ranges and models:

• P4, P5, P6, S6, H3, H4
• P2 25/8-180
• P2 32/8-180
• P2 25/10-130
• P2 32/10-180
• P2 25/12-130
• P2 32/12-180
