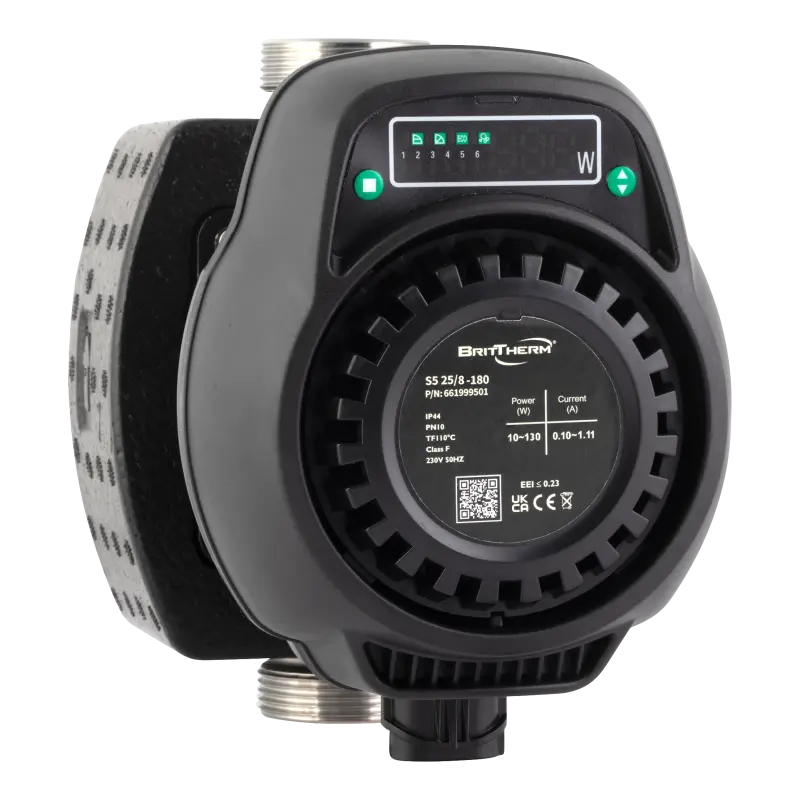

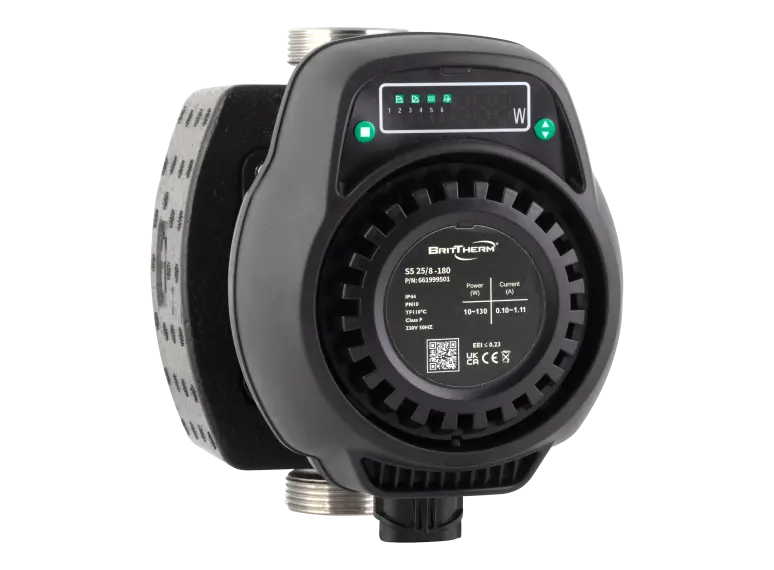

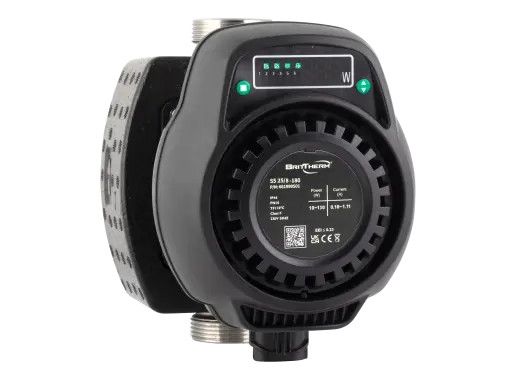

Circulator Pumps S5 25/8-180

𝗕𝗿𝗶𝘁𝗧𝗵𝗲𝗿𝗺 𝗦𝟱 𝗖𝗶𝗿𝗰𝘂𝗹𝗮𝘁𝗼𝗿 𝗣𝘂𝗺𝗽

Heavy duty stainless steel circulator with thirteen programs, for commercial drinking water systems.

𝗨𝘀𝗲 𝗶𝘁 𝗳𝗼𝗿: commercial hot water distribution loops · secondary returns in larger buildings: hotels, hospitals, care homes, schools, leisure centres, offices and blocks of flats · dairies, creameries, abattoirs, breweries and food and drink factories, on the hot water, rinse and wash-down side · pharmaceutical, cosmetics and laboratory buildings where stainless is the house standard · commercial laundries and kitchens with long hot water runs · plant rooms serving treated or softened water (check any dosing chemical against the datasheet) · calorifier and hot water storage vessel circuits · anywhere the pump is set locally and left, with no controller to answer to

𝗥𝗶𝗴𝗵𝘁 𝗳𝗼𝗿 𝘆𝗼𝘂 𝗶𝗳

• You are running a commercial hot water or secondary return system

• The water is drinkable and you want a stainless body

• You want automatic control without needing PWM

𝗤𝘂𝗶𝗰𝗸 𝗳𝗮𝗰𝘁𝘀

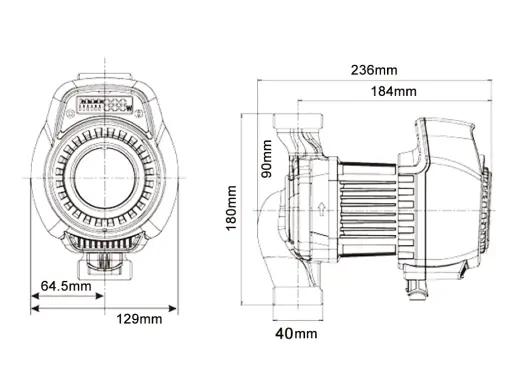

EN 1.4521 stainless steel casing · Connection 1 1/2" or 2" union · Port to port 180 mm · Max head 8 or 10 m · Max flow 7.5 to 10.8 m3/h · Power 10 to 180 W · EEI 0.23 · Max pressure 10 bar · IP44 · TF 95C · Class F · Four models · Thirteen programs · 6 year guarantee when you register the pump

𝗧𝗵𝗶𝗿𝘁𝗲𝗲𝗻 𝗽𝗿𝗼𝗴𝗿𝗮𝗺𝘀, 𝗮𝗹𝗹 𝘀𝗲𝘁 𝘄𝗶𝘁𝗵 𝗼𝗻𝗲 𝗯𝘂𝘁𝘁𝗼𝗻

𝗔𝗨𝗧𝗢. The pump works out the right operating range for the system and holds energy use down without losing performance.

𝗖𝗼𝗻𝘀𝘁𝗮𝗻𝘁 𝗽𝗿𝗲𝘀𝘀𝘂𝗿𝗲, 𝗖𝗣𝟮 𝘁𝗼 𝗖𝗣𝟱. Four settings that hold the same pressure whatever the flow rate.

𝗣𝗿𝗼𝗽𝗼𝗿𝘁𝗶𝗼𝗻𝗮𝗹 𝗽𝗿𝗲𝘀𝘀𝘂𝗿𝗲, 𝗣𝗣𝟮 𝘁𝗼 𝗣𝗣𝟱. Four settings that adjust in proportion to the flow.

𝗙𝗼𝘂𝗿 𝗳𝗶𝘅𝗲𝗱 𝘀𝗽𝗲𝗲𝗱𝘀. Steady, predictable output.

𝗚𝗼𝗼𝗱 𝘁𝗼 𝗸𝗻𝗼𝘄

Stainless casing, so it suits drinking water. Electrical and thermal protection is built in. Insulation jacket in the box at no charge.

𝗥𝗲𝗽𝗹𝗮𝗰𝗲𝘀: Grundfos Magna3 25-80 N, Magna3 32-100 N and Magna1 N, Wilo Stratos MAXO-Z and Yonos MAXO-Z, Lowara Ecocirc XL N, DAB Evoplus SAN and more.

𝗜𝗻 𝘁𝗵𝗲 𝗯𝗼𝘅: pump, set of nuts, 1.3 m cable with UK plug, insulation jacket at no charge, datasheet, in a sturdy box.

Figures are from the BritTherm datasheet for each model. Check the datasheet and the fitting instructions before you order, and have the pump fitted by a competent person. Guarantee subject to registration and the guarantee terms.

• Set of nuts
• 1.3m cable with a UK plug
• Datasheet
• Packaged in sturdy box
• Free of charge Insulation Jacket
