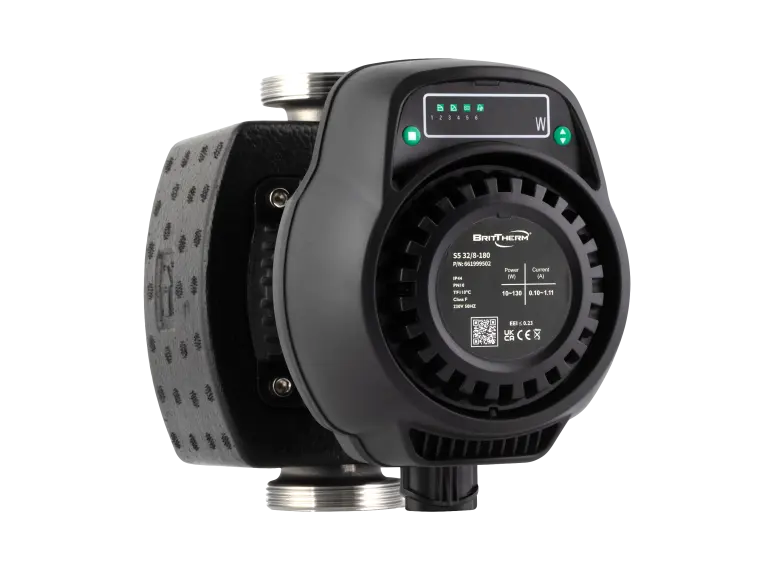

Сirculator Pumps S5 32/8-180

The S5 Series Pump is a heavy-duty, high-tech series designed for commercial use with a stainless steel EN1.4521 type casing. These pumps have 13 operating modes and are ideal for water supply systems with potable water.

- Four Modes of Constant Rotor Speed (“Old School”): Switchable with one button, these modes maintain a fixed rotor speed, ensuring consistent operation.

- AUTO Mode: Activated by pressing one button, the automation determines the optimal operating range of the pump for the current water supply system, minimising energy consumption without compromising performance.

- Four Constant Pressure Operating Modes (CP2, CP3, CP4, and CP5): Maintain constant pressure in water supply systems, regardless of flow rate.

- Four Proportional Pressure Operating Modes (PP2, PP3, PP4, and PP5): Adjust the pump operation in proportion to flow rate changes, ensuring optimal performance based on system demands.

Electrical and Thermal Protection: Safety systems that prevent pump breakdown due to external reasons not related to the operation of pump systems.

Every BritTherm Pump includes:

• Set of nuts
• 1.3m cable with a UK plug
• Datasheet
• Packaged in sturdy box



Free of charge Insulation Jackets included in every box for the following ranges:

• P1, P2, P3, P4, P5, P6, P7
• B3, B4
• S3, S4, S5, S6



Free of charge PWM Set of Cables included in every box for the following ranges and models:

• P4, P5, P6, S6, H3, H4
• P2 25/8-180
• P2 32/8-180
• P2 25/10-130
• P2 32/10-180
• P2 25/12-130
• P2 32/12-180
