Circulator Pumps S6 32/10-180

𝗕𝗿𝗶𝘁𝗧𝗵𝗲𝗿𝗺 𝗦𝟲 𝗖𝗶𝗿𝗰𝘂𝗹𝗮𝘁𝗼𝗿 𝗣𝘂𝗺𝗽

Commercial stainless steel circulator with PWM, so a controller or building management system can drive it directly.

𝗨𝘀𝗲 𝗶𝘁 𝗳𝗼𝗿: commercial hot water distribution loops · secondary returns in larger buildings: hotels, hospitals, care homes, schools, leisure centres, offices and blocks of flats · dairies, creameries, abattoirs, breweries and food and drink factories, on the hot water, rinse and wash-down side · pharmaceutical, cosmetics and laboratory buildings where stainless is the house standard · plant rooms serving treated or softened water (check any dosing chemical against the datasheet) · calorifier and hot water storage vessel circuits · buildings where the pump answers to a building management system, controller or thermostat over PWM

𝗥𝗶𝗴𝗵𝘁 𝗳𝗼𝗿 𝘆𝗼𝘂 𝗶𝗳

• A controller or building management system needs to drive the pump

• You are running a commercial drinking water system

• You want the widest set of programs in the stainless range

𝗤𝘂𝗶𝗰𝗸 𝗳𝗮𝗰𝘁𝘀

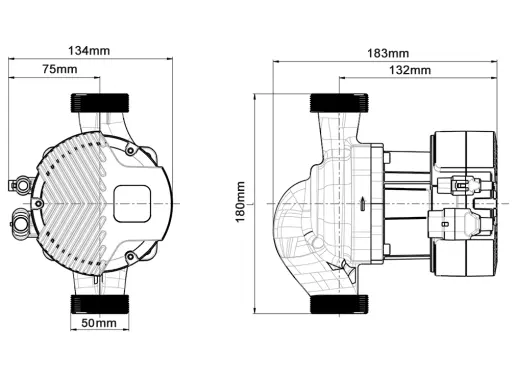

EN 1.4521 stainless steel casing · Connection 1 1/2" or 2" union · Eight models · Port to port 180 mm · Max head 10 to 18 m · Max flow 8.6 to 11.9 m3/h · Power to 360 W · EEI 0.23 · Max pressure 10 bar · IP44 · TF 95C · Class F · 3.8 kg · 6 year guarantee when you register the pump

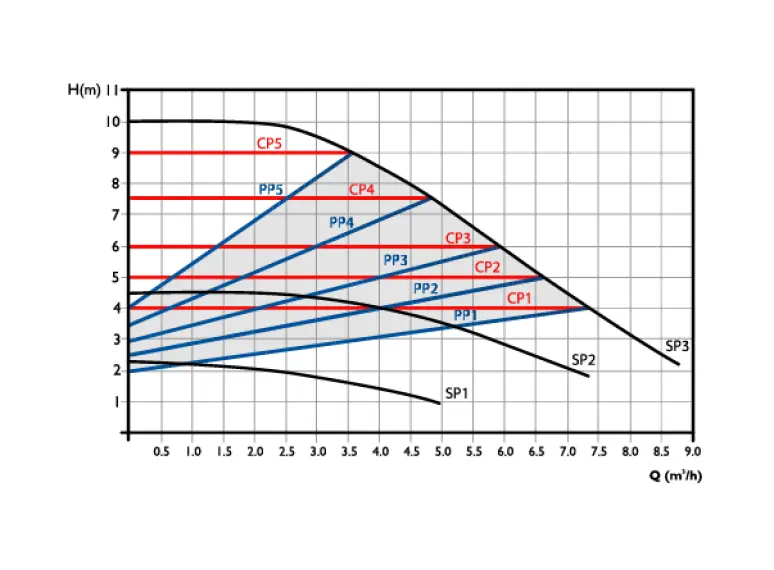

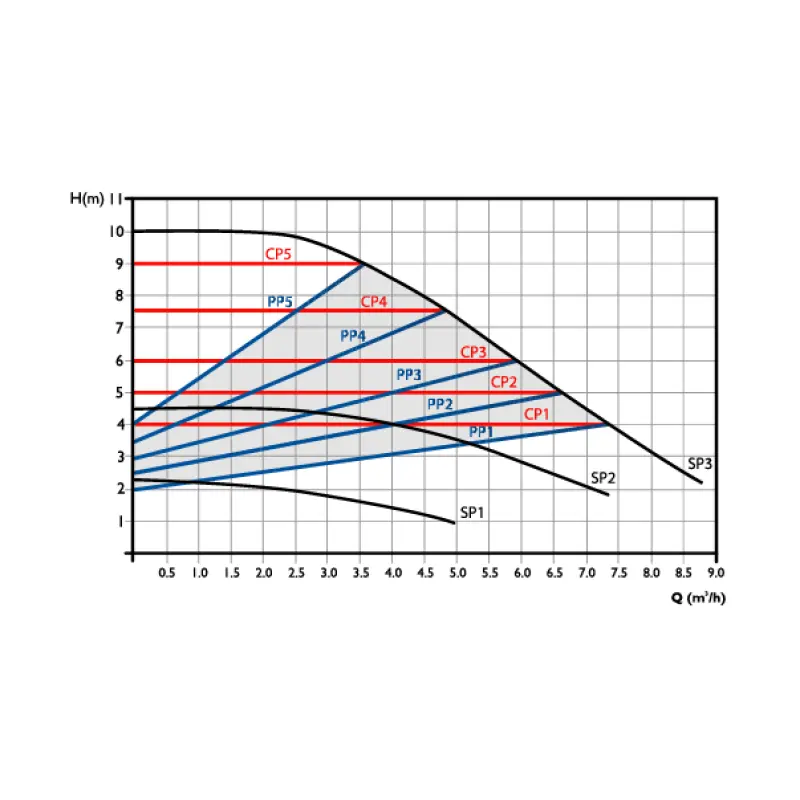

𝗣𝗿𝗼𝗴𝗿𝗮𝗺𝘀, 𝗮𝗹𝗹 𝘀𝗲𝘁 𝘄𝗶𝘁𝗵 𝗼𝗻𝗲 𝗯𝘂𝘁𝘁𝗼𝗻

𝗔𝗨𝗧𝗢. The pump works out the right operating range for the system on its own.

𝗖𝗼𝗻𝘀𝘁𝗮𝗻𝘁 𝗽𝗿𝗲𝘀𝘀𝘂𝗿𝗲, 𝗖𝗣𝟭 𝗮𝗻𝗱 𝗖𝗣𝟮. Holds the same pressure whatever the flow rate.

𝗣𝗿𝗼𝗽𝗼𝗿𝘁𝗶𝗼𝗻𝗮𝗹 𝗽𝗿𝗲𝘀𝘀𝘂𝗿𝗲, 𝗣𝗣𝟭 𝗮𝗻𝗱 𝗣𝗣𝟮. Adjusts in proportion to the flow.

𝗧𝗵𝗿𝗲𝗲 𝗳𝗶𝘅𝗲𝗱 𝘀𝗽𝗲𝗲𝗱𝘀. The full power range, minimum to maximum.

𝗣𝗪𝗠 𝗚𝗧 𝗮𝗻𝗱 𝗣𝗪𝗠 𝗦𝗧. Built into the pump's board, so a low voltage signal from a controller sets the speed. Works with Siemens, Honeywell and others. The PWM cable in the box is a universal two-wire lead, so it connects to any thermostat or controller with a PWM output.

𝗚𝗼𝗼𝗱 𝘁𝗼 𝗸𝗻𝗼𝘄

Stainless casing, so it suits drinking water. Electrical and thermal protection is built in. PWM cable and insulation jacket in the box at no charge.

𝗦𝟱 𝗼𝗿 𝗦𝟲? Same class of system. Choose the S6 if a controller or building management system needs to drive the pump over PWM. Choose the S5 if the pump is set locally and left.

𝗥𝗲𝗽𝗹𝗮𝗰𝗲𝘀: Grundfos Magna3 25-80 N, Magna3 32-100 N and Magna1 N, Wilo Stratos MAXO-Z and Yonos MAXO-Z, Lowara Ecocirc XL N, DAB Evoplus SAN and more.

𝗜𝗻 𝘁𝗵𝗲 𝗯𝗼𝘅: pump, set of nuts, 1.3 m cable with UK plug, insulation jacket and PWM cable set at no charge, datasheet, in a sturdy box.

Figures are from the BritTherm datasheet for each model. Check the datasheet and the fitting instructions before you order, and have the pump fitted by a competent person. Guarantee subject to registration and the guarantee terms.

• Set of nuts
• 1.3m cable with a UK plug
• Datasheet
• Packaged in sturdy box
• Free of charge Insulation Jacket
• Free of charge PWM Set of Cables
