Сirculator Pumps S5 32/10-180

Сirculator Pumps S5 32/10-180

Energy Efficiency Index (EEI) ≤ 0.23
Max Head: 10 meter
Max Flow: 10.8 м³/hour
Power: 10 ~ 180 watt
Current: 0.10 ~ 1.54 ampere
Maximum System Pressure: 10 Bar
Protection Class: IP44
Temperature Class: TF 95C
Insulation Class: F
Color: Black
Material: Staimless Steel
Weight: 3.4 kg
Size of connections: 2”
  • £439INC VAT
This product has a minimum quantity of 8
Energy Efficiency Index (EEI) ≤ 0.23
Max Head: 10 meter
Max Flow: 10.8 м³/hour
Power: 10 ~ 180 watt
Current: 0.10 ~ 1.54 ampere
Maximum System Pressure: 10 Bar
Protection Class: IP44
Temperature Class: TF 95C
Insulation Class: F
Color: Black
Material: Staimless Steel
Weight: 3.4 kg
Size of connections: 2”

The S5 Series Pump is a heavy-duty, high-tech series designed for commercial use with a stainless steel EN1.4521 type casing. These pumps have 13 operating modes and are ideal for water supply systems with potable water.

Four Modes of Constant Rotor Speed (“Old School”): Switchable with one button, these modes maintain a fixed rotor speed, ensuring consistent operation.

AUTO Mode: Activated by pressing one button, the automation determines the optimal operating range of the pump for the current water supply system, minimising energy consumption without compromising performance.

Four Constant Pressure Operating Modes (CP2, CP3, CP4, and CP5): Maintain constant pressure in water supply systems, regardless of flow rate.

Four Proportional Pressure Operating Modes (PP2, PP3, PP4, and PP5): Adjust the pump operation in proportion to flow rate changes, ensuring optimal performance based on system demands.

Electrical and Thermal Protection: Safety systems that prevent pump breakdown due to external reasons not related to the operation of pump systems.

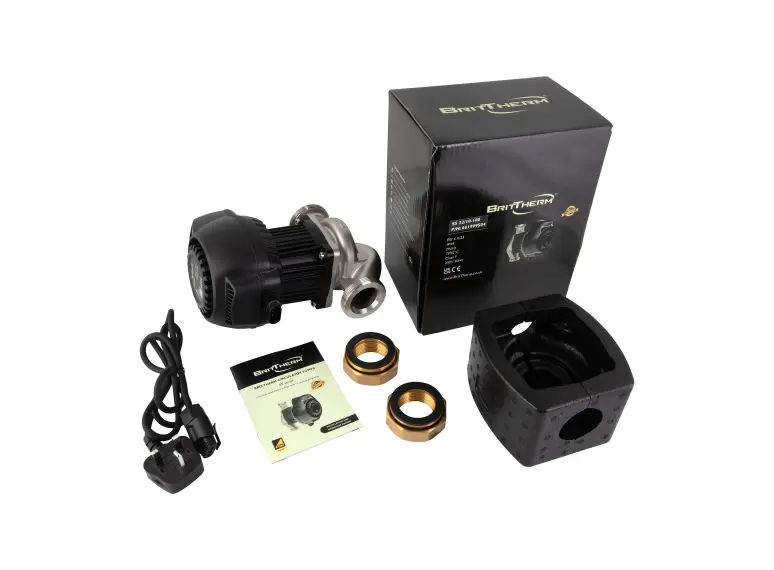

  • Set of nuts
  • 1.3m cable with a UK plug
  • Datasheet
  • Packaged in sturdy box
  • Free of charge Insulation Jacket
