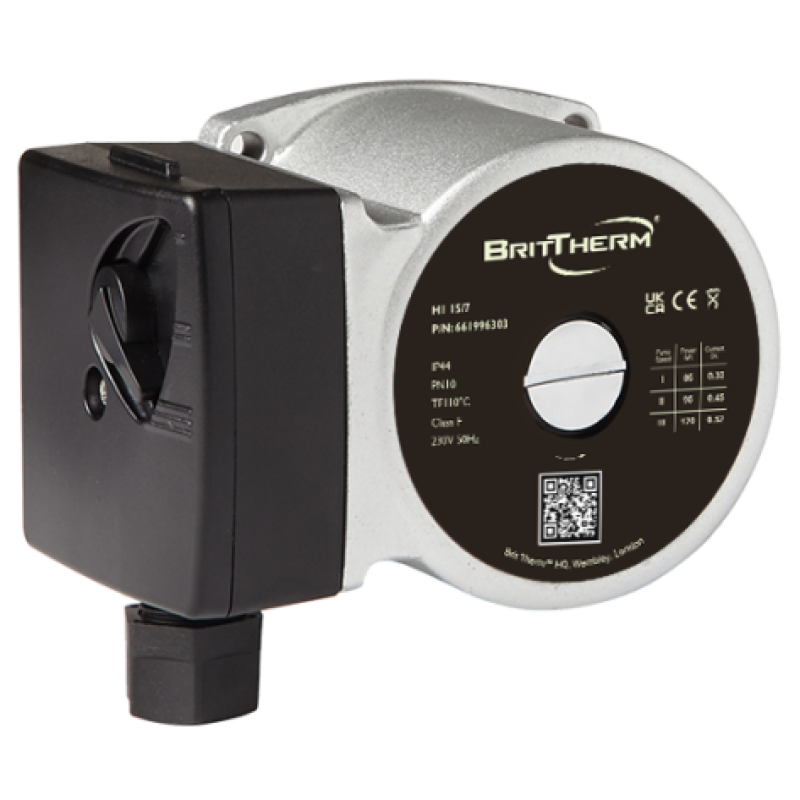

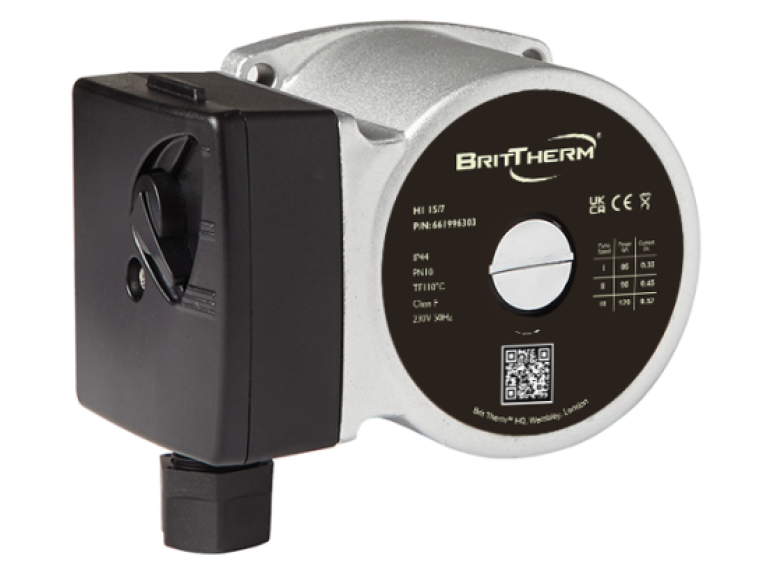

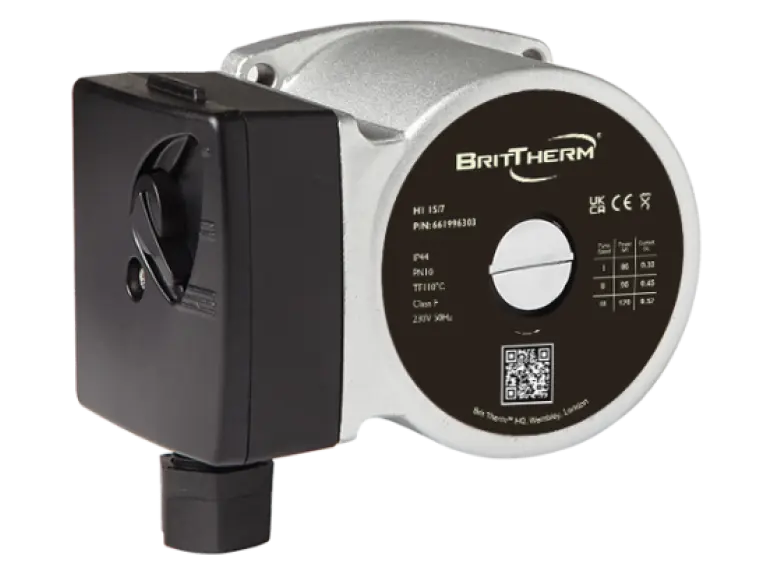

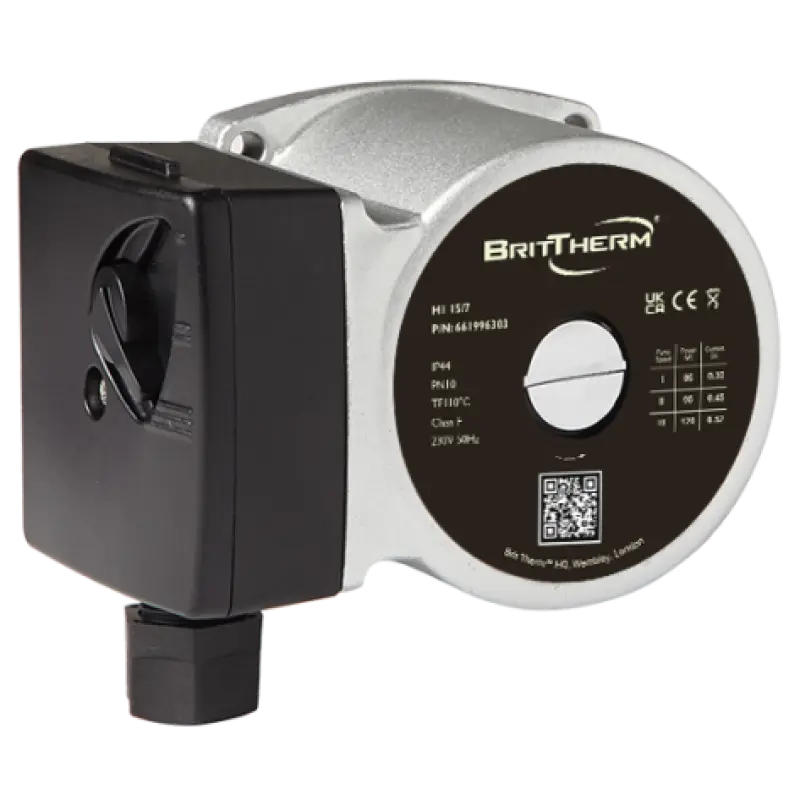

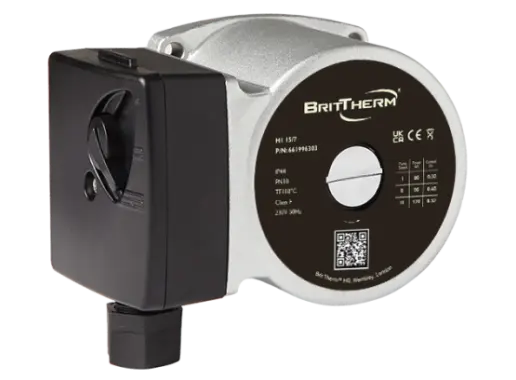

Replacement Pump Head H1 15/7
Replacement Pump Head H1 15/7

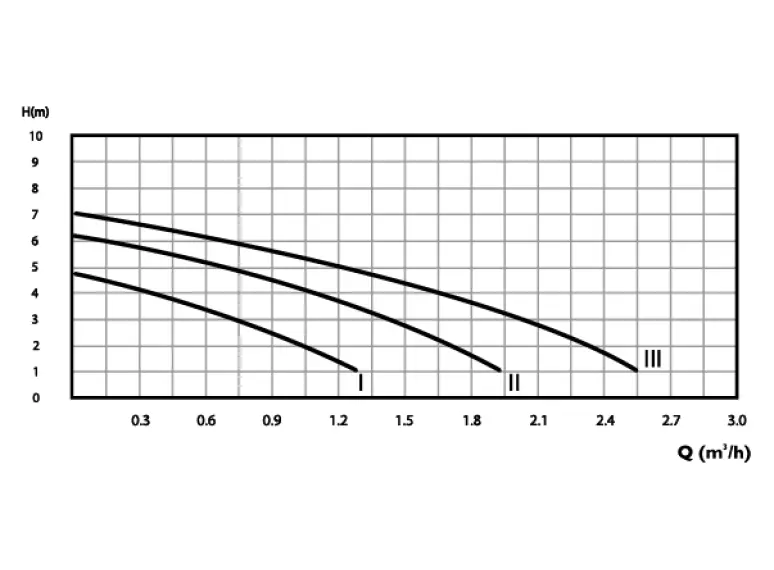

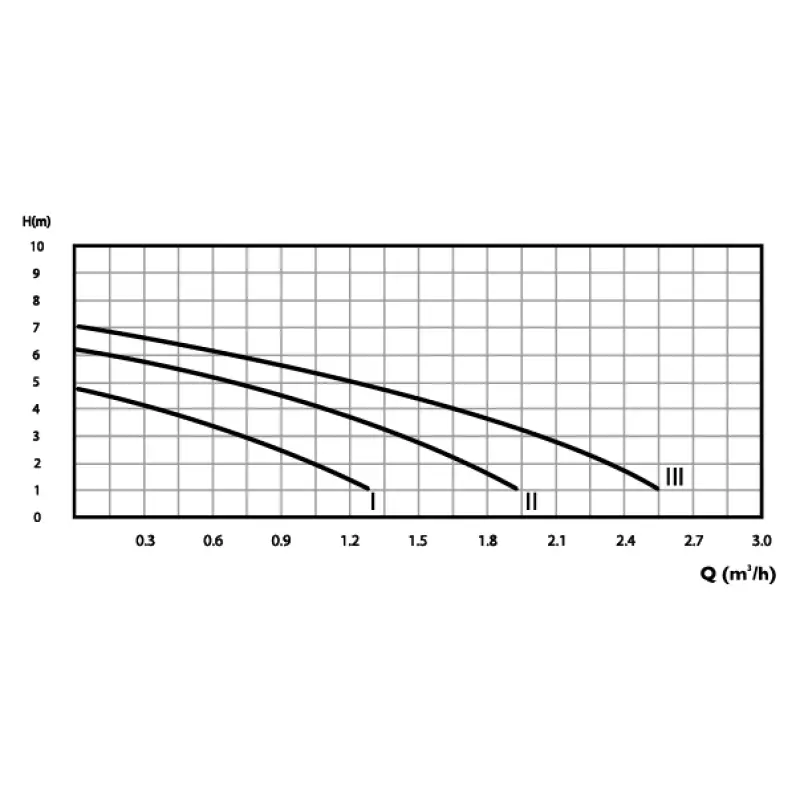

Head in speed
III: 7.0 / II: 6.0 / I: 4.0 meter
Power in speed:
III: 120 / II: 95 / I: 65 watt
Current in speed:
III: 0.52 / II: 0.45 / I: 0.33 ampere
Max Flow:
2.28 м³/hour
Maximum System Pressure:
10 Bar
Protection Class:
IP44
Temperature Class:
TF 110C
Insulation Class:
F
Weight:
1.5 kg
-
£69INC VAT
-
This product has a minimum quantity of 8 (mix and match)
Head in speed
III: 7.0 / II: 6.0 / I: 4.0 meter
Power in speed:
III: 120 / II: 95 / I: 65 watt
Current in speed:
III: 0.52 / II: 0.45 / I: 0.33 ampere
Max Flow:
2.28 м³/hour
Maximum System Pressure:
10 Bar
Protection Class:
IP44
Temperature Class:
TF 110C
Insulation Class:
F
Weight:
1.5 kg
The H1 series multi-purpose electric motor (pump head) is a classic and time-tested three-speed motor used in all types of pumps with counterclockwise rotor rotation.
Three fixed pump speeds are manually selected using a mechanical switch, allowing the entire pump power range to be used.
Electric motor rotor speed control is quite simple—with a standard three-position switch.
Very low noise level during pump operation.
Very easy installation of the electric motor using a set of multi-purpose bolts that are supplied complete with the electric motor.
Very simple connection of the pump to the electrical network in the boiler.
- Set of nuts
- 1.3m cable with a UK plug
- Datasheet
- Packaged in sturdy box
New codes:
H1 15/7
Equivalents from other brands:
Grundfos - USP15-50
Grundfos - USP15-60
