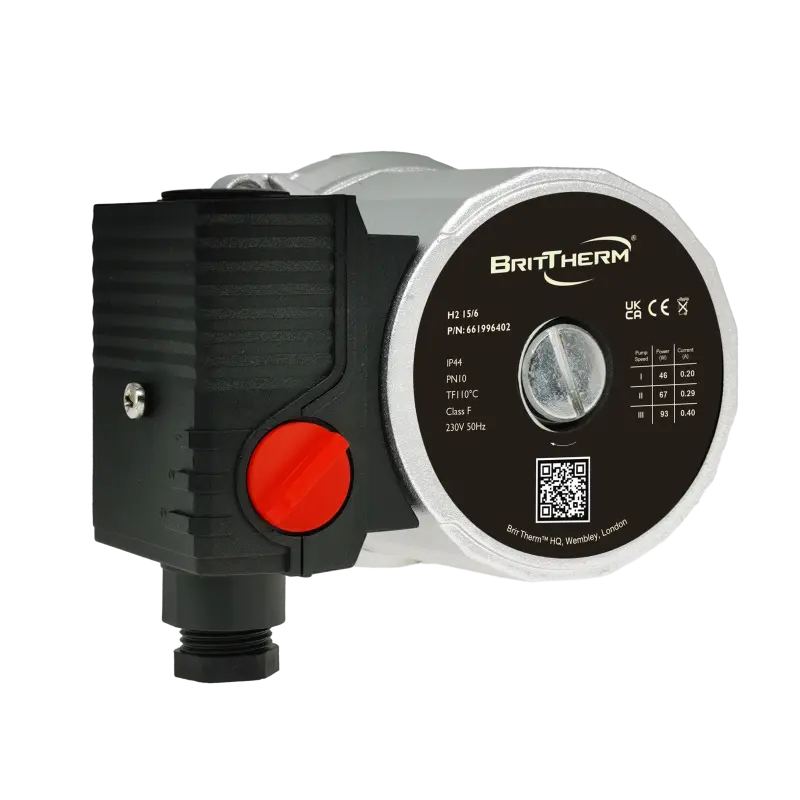

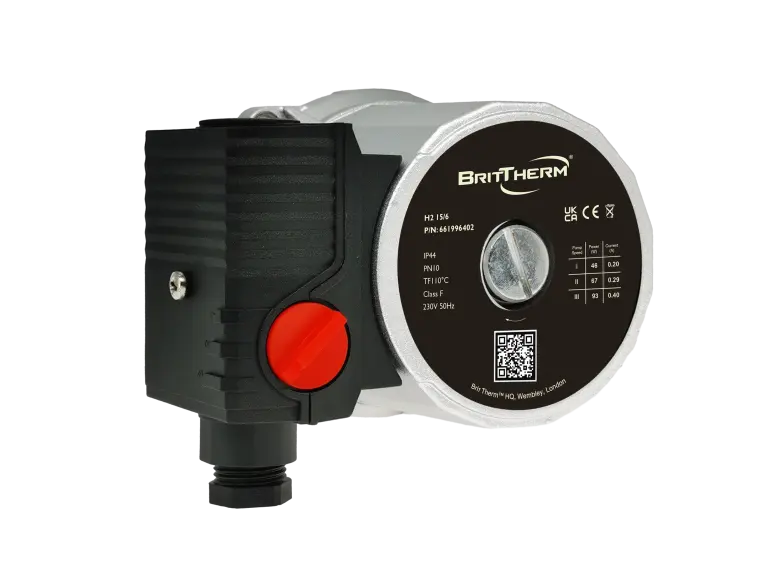

Replacement Pump Head H2 15/6
Replacement Pump Head H2 15/6
Head in speed
III: 6.0 / II: 5.0 / I: 3.0 meter
Power in speed:
III: 93 / II: 67 / I: 46 watt
Current in speed:
III: 0.40 / II: 0.29 / I: 0.20 ampere
Max Flow:
1.98 м³/hour
Maximum System Pressure:
10 Bar
Protection Class:
IP44
Temperature Class:
TF 110C
Insulation Class:
F
Weight:
1.6 kg
-
£58INC VAT
-
This product has a minimum quantity of 8 (mix and match)
Head in speed
III: 6.0 / II: 5.0 / I: 3.0 meter
Power in speed:
III: 93 / II: 67 / I: 46 watt
Current in speed:
III: 0.40 / II: 0.29 / I: 0.20 ampere
Max Flow:
1.98 м³/hour
Maximum System Pressure:
10 Bar
Protection Class:
IP44
Temperature Class:
TF 110C
Insulation Class:
F
Weight:
1.6 kg
The H2 Series multi-purpose electric motor (pump head) is a classic and time-tested three-speed motor that is used in all types of pumps with clockwise rotor rotation.
Electric motor rotor speed control is simple - with a standard three-position switch.
Three fixed pump speeds are manually selected using a mechanical switch, allowing to use the entire pump power range.
Very low noise level during pump operation.
Very easy installation of the electric motor using a set of multi-purpose bolts that are supplied complete with the electric motor.
Very simple connection of the pump to the electrical network in the boiler.
- Set of nuts
- 1.3m cable with a UK plug
- Datasheet
- Packaged in sturdy box
New codes:
H2 15/6
Equivalents from other brands:
WILO - STAR-RS
