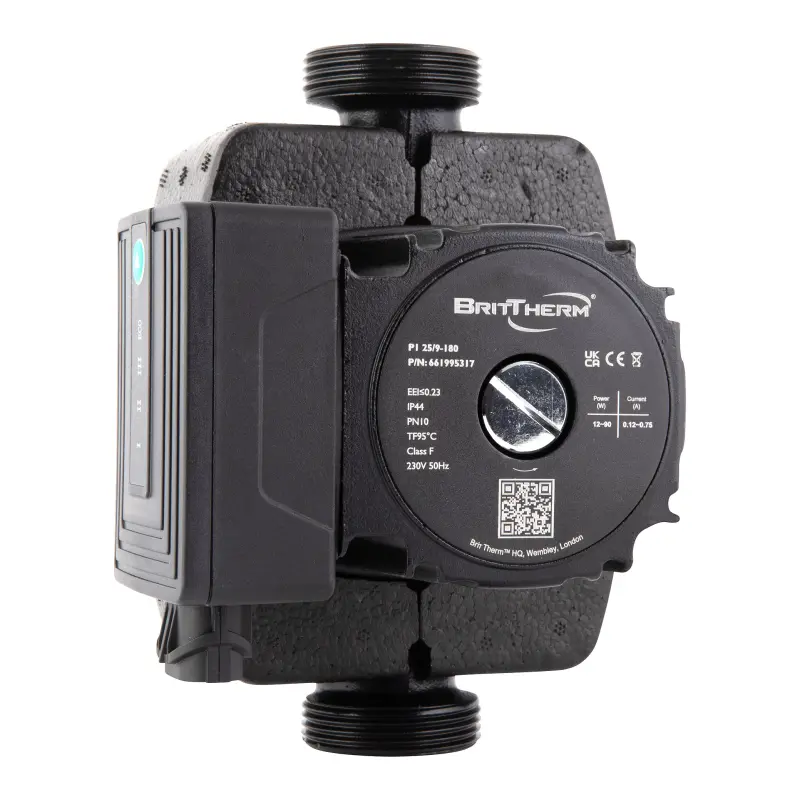

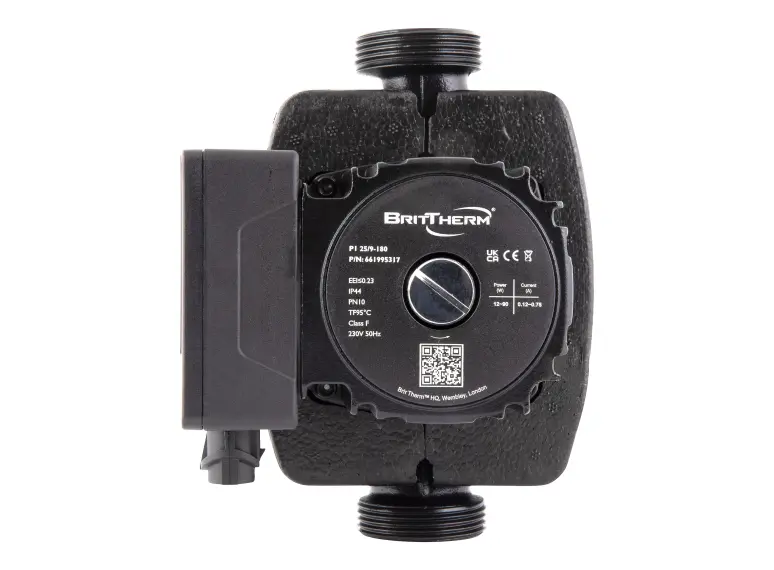

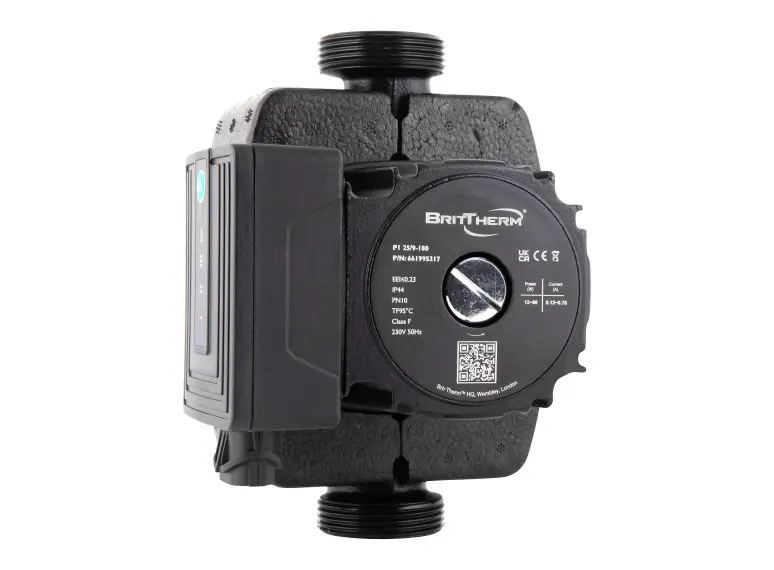

Сirculator Pumps P1 25/9-180

Bestseller

Сirculator Pumps P1 25/9-180

Energy Efficiency Index (EEI) ≤ 0.21

Automatic programs: 4

Max Head: 9 meter

Max Flow: 5.4 м³/hour

Power: 12 ~ 90 watt

Current: 0.12 ~ 0.75 ampere

Maximum System Pressure: 10 Bar

Protection Class: IP44

Temperature Class: TF 95C

Insulation Class: F

Color: Black

Material: Cast Iron

Weight: 2.3 kg

Size of connections: 1 1/2"

£144INC VAT

Buy pump P1 25/9-180 on amazon Request Trade Price

Print / PDF Documentation Where to buy

This product has a minimum quantity of 8

Energy Efficiency Index (EEI) ≤ 0.21

Automatic programs: 4

Max Head: 9 meter

Max Flow: 5.4 м³/hour

Power: 12 ~ 90 watt

Current: 0.12 ~ 0.75 ampere

Maximum System Pressure: 10 Bar

Protection Class: IP44

Temperature Class: TF 95C

Insulation Class: F

Color: Black

Material: Cast Iron

Weight: 2.3 kg

Size of connections: 1 1/2"

The P1 Series pumps are equipped with four built-in automatic operation modes. The intelligent operation mode of the P1 series automatically adjusts to the specifications of any heating system to achieve optimal comfort and minimal energy consumption.

- Three Fixed Speeds ("Old School"): Selectable via a single button, allowing the full range of pump power to be used, from minimum to maximum.

- AUTO Mode: The intelligent mode, activated by a single button, automatically adapts to the heating system's requirements, minimising energy consumption without compromising quality.

- Automatic Night Power Reduction Function: This reduces the pump's energy consumption to 5 watts, maintaining the heating system's quality while significantly reducing energy usage.

ELECTRICAL AND THERMAL PROTECTION: These safety systems prevent pump breakdown due to external factors unrelated to the pump's operation.

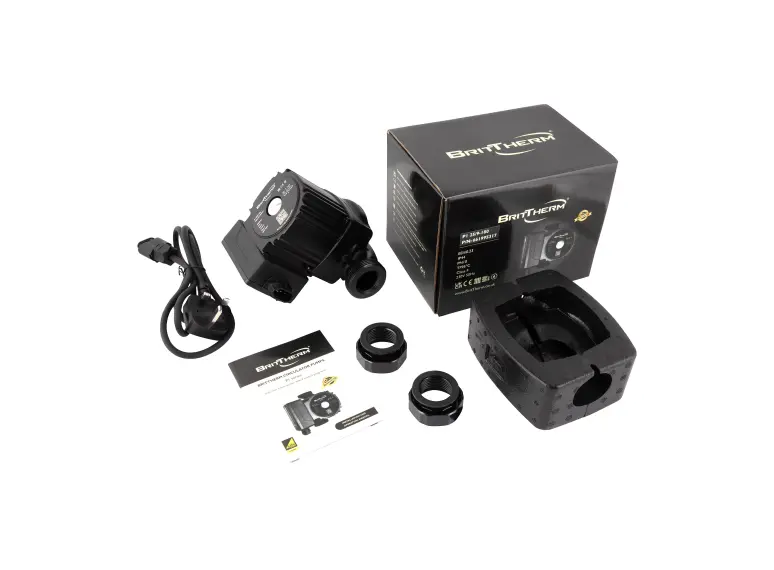

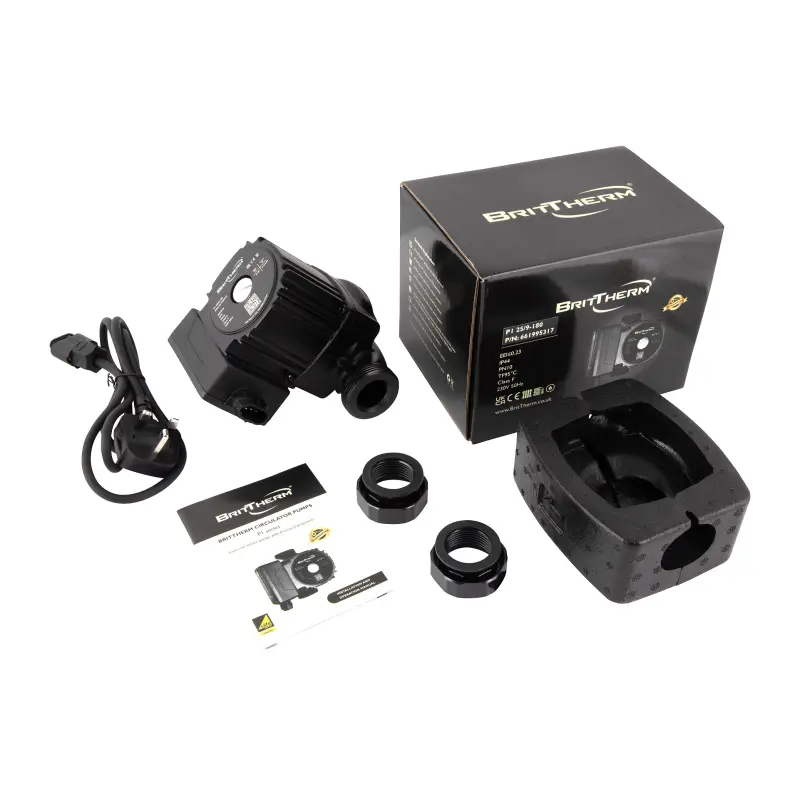

Set of nuts
1.3m cable with a UK plug
Datasheet
Packaged in sturdy box
Free of charge Insulation Jacket

P1 Instruction Manual

New codes:

P1 25/9-180

Equivalents from other brands:

Grundfos - UP Grundfos - UPS Grundfos - ALPHA WILO - STAR-RS WILO - YONOS PARA WILO - YONOS PICO WILO - ATMOS PICO DAB - EVOSTA DAB - EVOSTA 2 DAB - EVOSTA 3 LOWARA - TLC LOWARA - ECORIC LOWARA - ECORIC PREMIUM STUART TURNER - ST
